Product Description

Description

50 Series LED marker lamps feature a slimline design with integrated reflectors providing a single package solution for forward, side and rear marker / reflex reflector functions. The low profile design allows for streamlined flush fitting that contours with modern vehicle styling. An innovative mounting system uses Smart Clip™ module and base design for secure fitting. Suited to OE and commercial applications. Integrated superseal connector options also available.



Features

  • •All in one compliant marker / reflector solution
  • •Streamlined design to match modern vehicles
  • •Secure Smart Clip™ mounting
  • •Optional integral superseal connector
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Custom Builds
Functions Front End Outline

Rear Position

Side Marker / Side Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Front End Outline:1.8W

Side Marker:1.2W

Rear Position:1.2W
Mounting Smart Clip™
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 3.0M
Dimensions 123x45x18mm
ADR Compliance Front End Outline:49/00, Front Reflex Reflector:47/00

Rear Position:49/00

Side Marker:74/00:SM1, Side Marker:45/01 Side Retro Reflector:47/00
Homologation Certification ECE (Emark)

Parts List

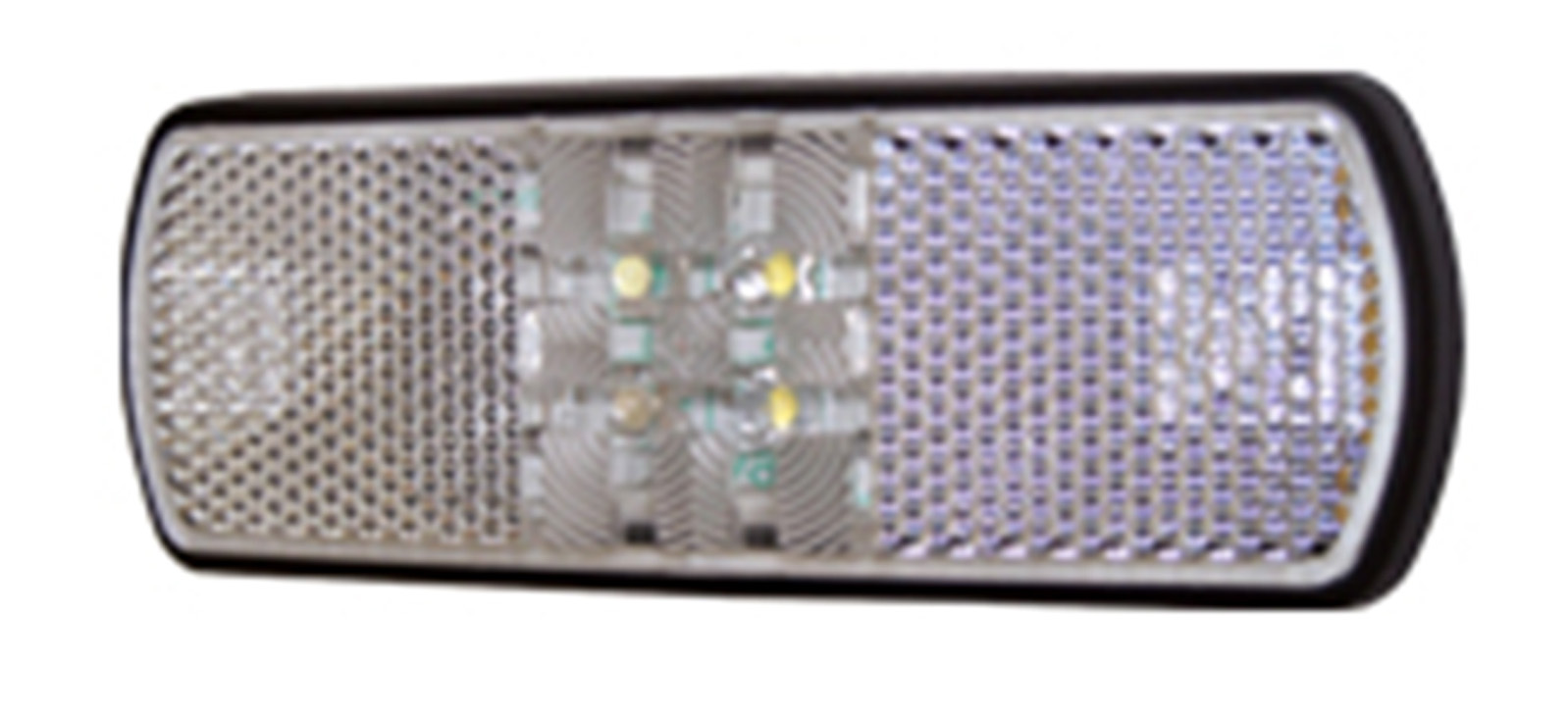

FM50CLED PEREI M50 Series Front End Oultine / Reflector Clear 9-33V 3.0M - Box
SM50ALED PEREI M50 Series Side Marker / Reflector Amber 9-33V 3.0M - Box
RM50RLED PEREI M50 Series Rear Position Marker / Reflector Red 9-33V 3.0M - Box
