Product Description

Description

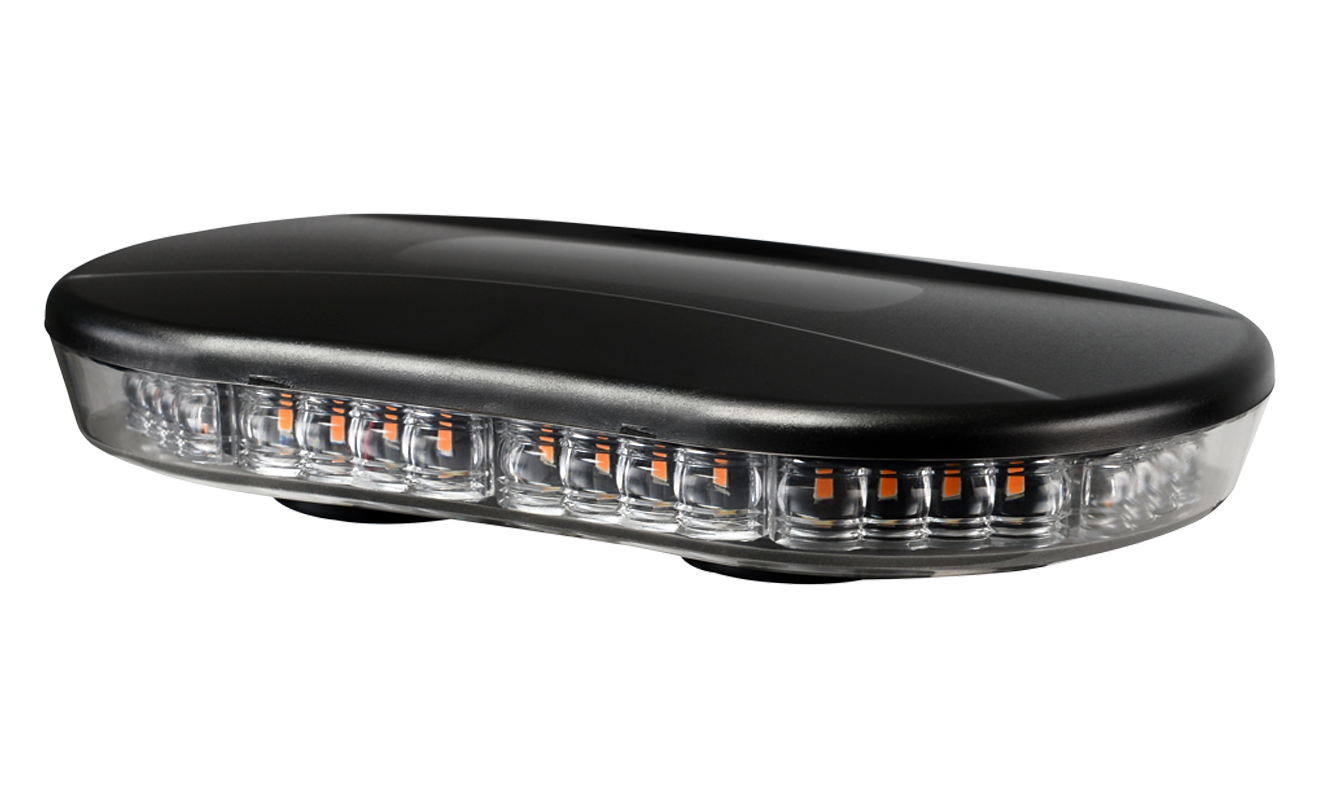

Whitevisionís new BE400 Series is the next advancement in LED Beacons technology with its Emarked (ECE R65, EMC R10) rating and SAE J845. Featuring 20 selectable flash patterns, low profile design, low amp draw and power consumption, these beacons are ideal for emergency, construction and motorists, police, fire and EMS personnel as well as marine applications.



Features

  • • Emarked (ECE R65 EMC R10/SAE J845)
  • • Fixed Bracket / Magnetic mount options
  • • Low current draw
  • • 20 Adjustable flash patterns
  • • Fully sealed weatherproof IP67
  • • 360∞ light distribution, no dark spot

Specifications

Specifications

Applications •Construction •Agriculture •Breakdown •Emergency •Forklifts
Functions Warning Amber Beacon
Voltage 10-30V
Wattage 20W
Mounting Fixed Bracket / Mag Mount
Lens Polycarbonate
Environmental IP67



Flash Patterns

Option Flash Pattern Flash Per Min Option Flash Pattern Flash Per Min
1 Single 120 11 Combo (Left-right split-stroble-rotate) 120
2 Double 67 12 Single (left-right split) 71
3 Quad 71 13 Double (left-right split) 74
4 Strobe 73 14 Quad (left-right split) 72
5 Rotating 100 15 Strobe (left-right split) 73
6 Combination (# 1, 2 & 4)   16 Single (left-right split) 100
7 Ten 69 17 Ten (left-right) 75
8 Single ñ Ten 10 18 Double (left-right, slow-fast)
9 Strobe - Single 9 19 Quad (left-right, slow-fast)
10 Rotate 50 20 Combine (3-14 combine)



Parts List

BE400-BR 20W LED Mini Bar / Beacon 10-30V Bolt Mount (251x200x56mm)

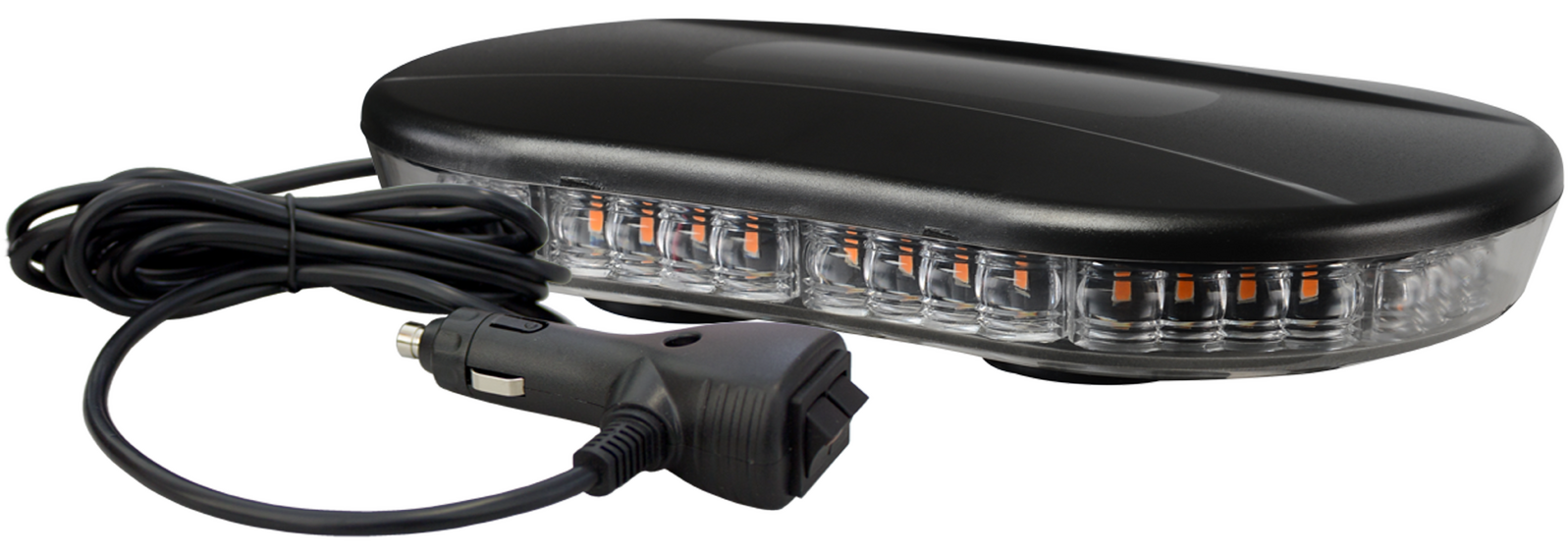

BE400-MG 20W LED Mini Bar / Beacon 10-30V Magnetic Mount (251x170x41mm)
