Product Description

Description

With ultra heavy-duty construction, the new Perei 510 Series Jumbo range of combination lamps offers ultimate quality, durability and reliability.Designed specifically for heavy-duty applications these lamps feature high heat and enhanced UV protective coating making the unit highly durable in most harsh operating conditions.The triple module features a high strength ABS base with stop / rear position, rear direction indicator and reverse functions with integrated reflectors.This Series is specifically designed to suit OE and heavy vehicle applications.



Features

  • •Ultra heavy-duty construction
  • •Designed for harsh environments
  • •Modular LED system
  • •Enhanced chemical protection
  • •Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Trailers •Heavy Trailers•Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage STOP: 1.6W

REAR POSITION: 0.4W/0.8W

INDICATOR: 2W

REVERSE: 2W
Mounting Front or rear Stud
Materials Lens ñ Polycarbonate

Housing ñ ABS/PC
Environmental IP67

Parts List

CRL510LEDB PEREI 510 Series Triple Jumbo Stop / Tail / DI 9-33V WHITE & CLEAR LENS - BLISTER

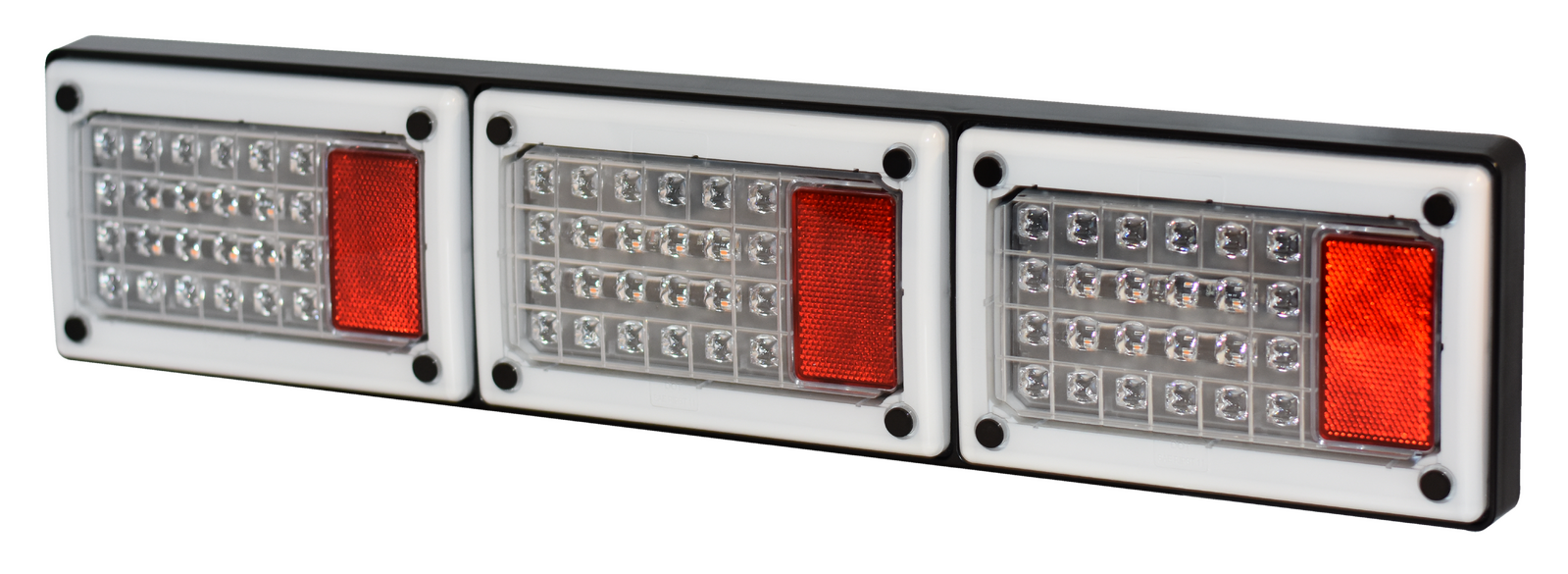

CRL510RLEDB PEREI 510 Series Triple Jumbo Stop / Tail / DI/ Reverse 9-33V WHITE & CLEAR LENS ñ BLISTER
SINGULAR MODULES

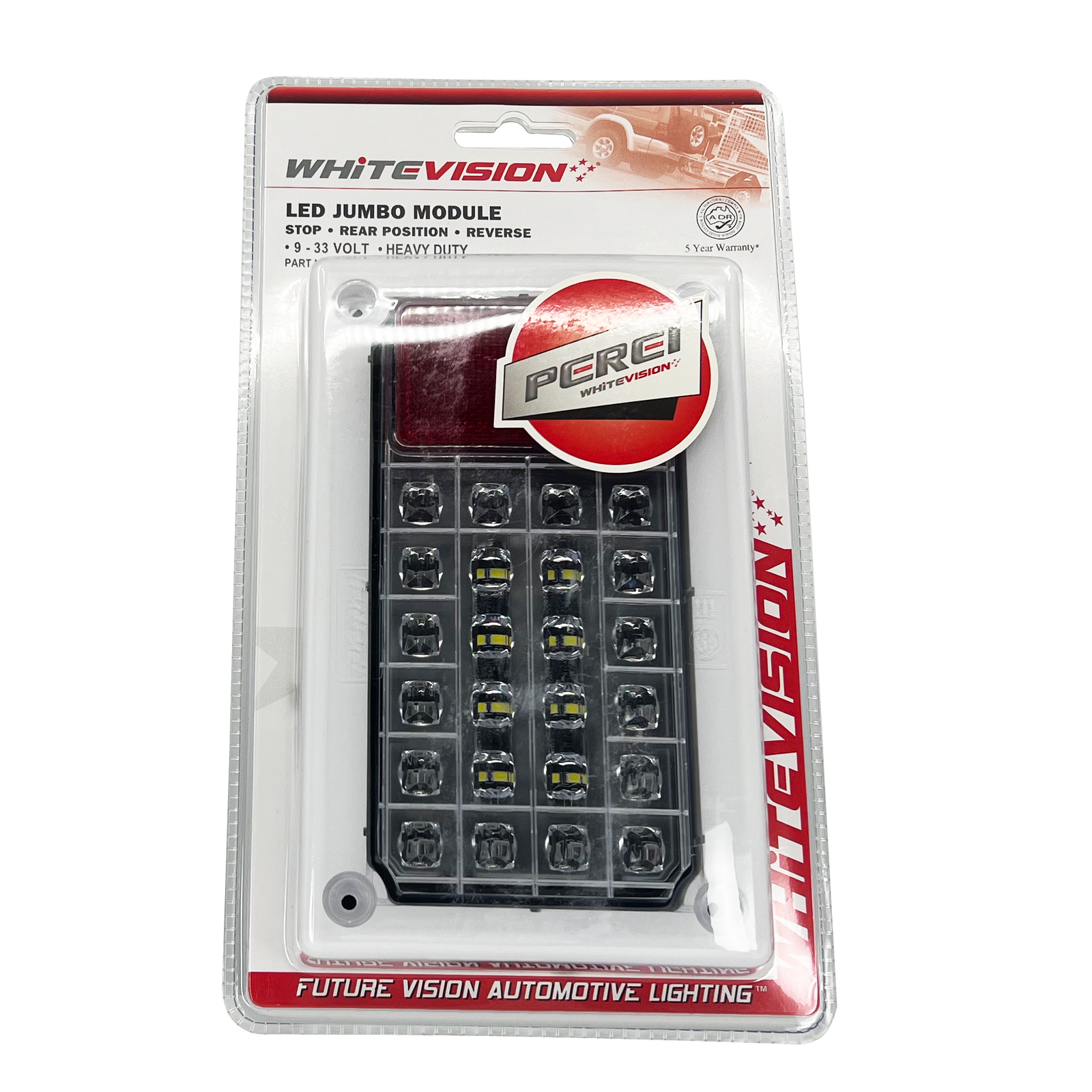

RL510SRLEDB PEREI 510 Series Jumbo Stop / Tail / reverse Module 9-33V Blister
RL510SDLEDB PEREI 510 Series Jumbo Stop / Tail / Indicator Module 9-33V Blister
