Product Description

Description

ZZ Series lamps use state-of-the-art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm, and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position/indicator/reserve / DRL / park and fog making the applications almost limitless. The 95mm stop / rear position series features high-output leds for high reliability and compliance for rear positions. Suited to OEM and commercial applications.



Features

  • • State of the art design & optics to match modern vehicle styles

  • • Use individually or with 95mm and 122mm ZZ series lamps

  • • High reliability popular 55mm package

  • • Coloured or Clear lens options

  • • Emark & ADR Compliant



Specifications

Specifications

Voltage: 12V, 24V or 9-33V
Power: DRL 12V 4.4W
FRONT 12V 0.6W
DI 12V 1.5W
24V 2W
STOP 12V 1.5W
24V 2W
TAIL 12V 1W
24V
Lens: PMMA
Housing: ABS/Polycarbonate
Mounting: Screw
Environmental: IP67 Sealed

Parts List

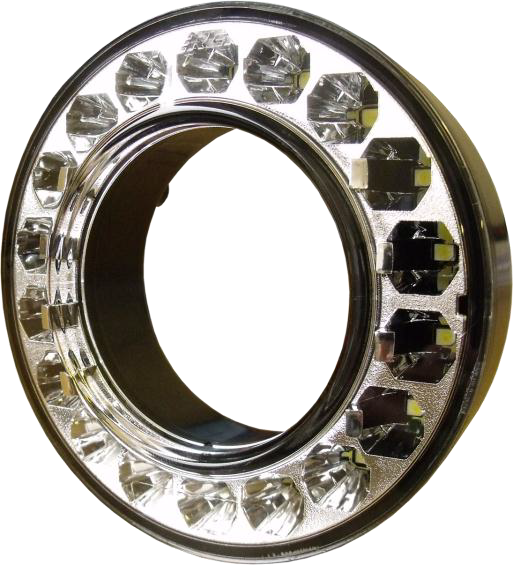

DL103SZZ-5-2-AA Front Position Daytime Running Lamp 9-33V
ST105SZZ-2-2-AA Stop / Tail Ring Clear Lens 12V
ST105SZZ-4-2-AA Stop / Tail Ring Clear Lens 24V
ST106SZZ-2-2-AA Stop /Tail Ring Red Lens 12V
ST106SZZ-4-2-AA Stop /Tail Ring Red Lens 24V
RD105SZZ-2-2-AA Rear Indicator Ring Clear Lens 12V
RD105SZZ-4-2-AA Rear Indicator Ring Clear Lens 24V
RD106SZZ-2-2-AA Rear Indicator Ring Amber Lens 12V
RD106SZZ-4-2-AA Rear Indicator Ring Amber Lens 24V
RR095SZZ-8-2-AA 122mm dia Reflex Reflector
