Product Description

Description

ZZ Series lamps use state of the art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position / indicator / reverse / DRL / park and fog making the applications almost limitless. The 95mm direction indicator series feature high output LED's for high reliability and compliance for front and rear positions. Suited to OEM and commercial applications.



Features

  • • State of the art design & optics to match modern vehicle styles
  • •Use individually or with 55mm and 122mm ZZ series lamps
  • •High reliability popular 95mm package
  • •Coloured or Clear lens options
  • •Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Cars •Classic Cars •Custom Builds
Functions Rear Direction Indicator
Voltage 9-33V DC Varivolt9-33V DC VarivoltÆÆ / 12V Only / 24V Options
Wattage Rear Direction Indicator:1.5W@12V
Mounting 3 Point Rear Mount
Materials High Impact PMMA Lens Polycarbonate Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 95x27mm
ADR Compliance Rear Direction Indicator:6/00:Cat2a
Homologation Certification ECE (Emark)

Parts List

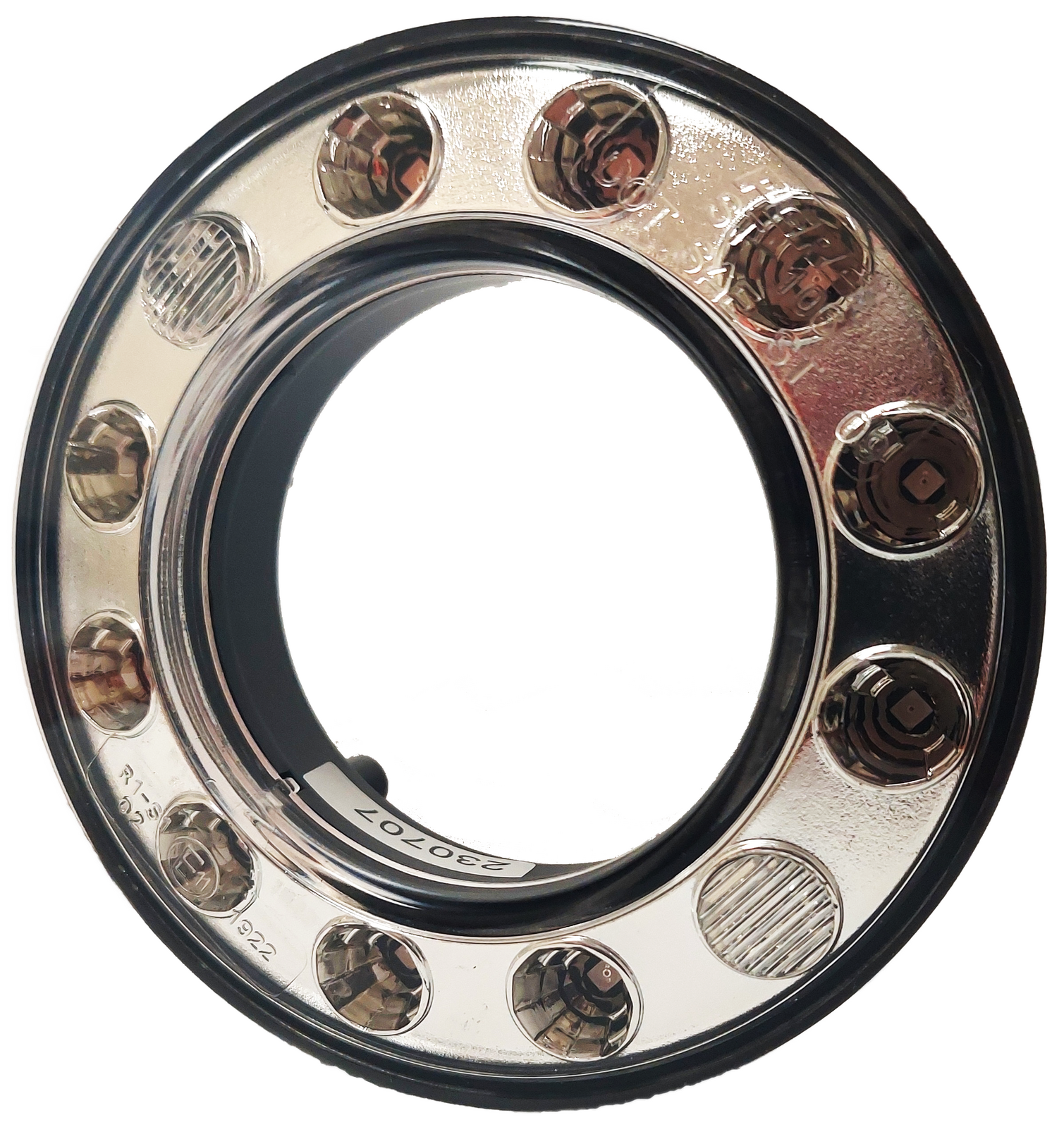

RD106SZZ-2-2-AA Rear Direction Indicator 95mm RoundAmberLens12V0.5M - Box
RD105SZZ-2-2-AA Rear Direction Indicator 95mm RoundClearLens12V0.5M - Box
RD106SZZ-4-2-AA Rear Direction Indicator 95mm RoundAmberLens24V0.5M - Box
RD105SZZ-4-2-AA Rear Direction Indicator 95mm Round ClearLens24V0.5M - Box
