Product Description

Description

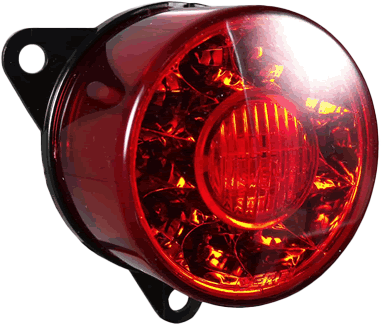

ZZ Series lamps use state of the art optics and design to match modern vehicle styling. Featuring a true modular system of 122mm, 95mm and 55mm lamps they can be used individually or inserted together to form a unique integrated combination lamp. Each diameter module is available for most functions front or rear including stop / rear position / indicator / reverse / DRL / park and fog making the applications almost limitless. The 55mm stop / rear position series feature high output LED's for high reliability and compliance for rear positions. Suited to OEM and commercial applications.



Features

  • •State of the art design & optics to match modern vehicle styles
  • •Use individually or with 95mm and 122mm ZZ series lamps
  • •Compact high reliability 55mm package
  • •Coloured or Clear lens options
  • •Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Cars •Classic Cars •Custom Builds
Functions Stop / Rear Position
Voltage 9-33V DC VarivoltÆ / 12V Only / 24V Options
Wattage Stop:1.7W@12VRear Position:0.6W@12V
Mounting 3 Point Rear Mount
Materials High Impact PMMA Lens Polycarbonate Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 55 x 38mm
ADR Compliance Stop:49/00, Rear Position:49/00
Homologation Certification ECE (Emark)



Parts List

ST101SZZ-2-2-AA Stop / Rear Position 55MM Round Red 12V 0.5M Box
ST101SZZ-4-2-AA Stop / Rear Position 55MM Round Red 24V 0.5M Box
ST102SZZ-2-2-AA Stop / Rear Position 55MM Round Clear 12V 0.5M Box
ST102SZZ-4-2-AA Stop / Rear Position 55MM Round Clear 24V 0.5M Box
ST102SZZ-4-2-BB LED Stop / Tail lamp (55mm dia 24 volt) Clear Lens
