Product Description

Description

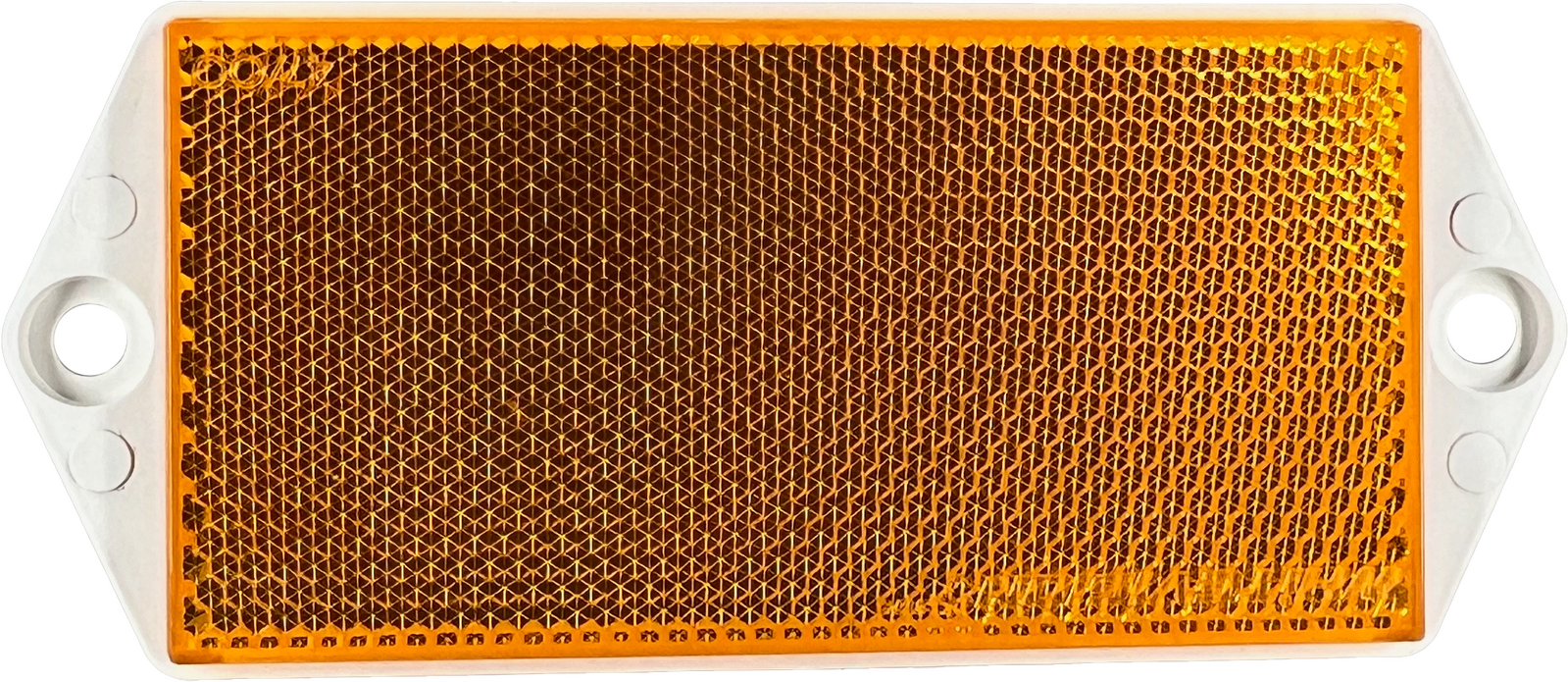

WR102 Series reflex reflectors are constructed from high quality optic prisms resulting in a highly reflective lens for maximum compliance and safety. The WR102 series is a larger size reflex reflector for larger vehicles where maximum reflective surface area is required for compliance and safety. These units feature a high impact PMMA lens and ultrasonically welded screw mount base for easy and secure fitting.



Features

  • • High grade optic prisms
  • • Ultrasonic welded base
  • • High impact lens
  • • Screw mount base
  • • Fully ADR compliant

Specifications

Specifications

Applications • Trucks  • Rigid Bodies  • Bus & Coach • Custom Builds
Functions Front / Side / Rear Reflex Reflector
Mounting Screw Mount
Materials High impact PMMA lens, ABS base
Environmental Fully Sealed
Dimensions 127x48x7.5mm
ADR Compliance Front / Side / Rear Reflector ADR 47/00
CRN Certification Side (Amber) 15926  Front (Clear) 15925, Rear (Red) 15940



Parts List

WR102A Amber Reflector Welded White – Screw Mount 127x48x7.5mm
WR102C Amber Reflector Welded White – Screw Mount 127x48x7.5mm
WR102R Amber Reflector Welded White – Screw Mount 127x48x7.5mm
