Product Description

Description

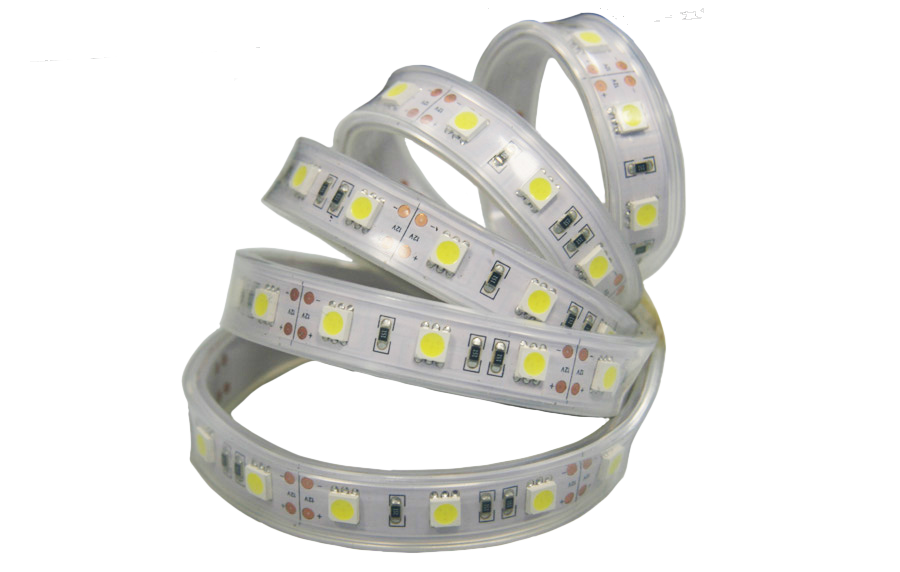

Whitevision's Coolight™ T4 series premium grade LED strip are a ultra high quality strip designed for maximum performance and efficiency. The high power white strip uses ultra reliable 5050 SMD LED chips with specialised optics to produce one of the highest output LED strips per metre available. The T4 series also features integrated low voltage circuit protection technology and superior flexible properties enabling limitless applications. Fully rated to IP66, the T4 series strip is fully encased in a water resistant silicon sleeve allow applications in extreme environments. This strip uses screw type installation clips to ensure the strong and secure mounting, ideal for high vibration or chemical prone installations. Suitable for OE and commercial applications where high output and reliability is paramount.



Features

  • •Premium Grade LED Strip
  • •Superior light output per metre
  • •High efficienccy and low current consumtion
  • •Designed for heavy duty installations
  • •Secure screw clip Mounting

Specifications

Specifications

Applications •RV •Bus & Coach •Caravan •Custom Builds •Mining •4x4
Functions High Power White LED Strip for lighting
Voltage 12 or 24 Volt
Watage 14.4W/M
Colour Temperature High Power White - 6000K
Lumen per LED 20-24lm/W
LEDs/M 60
Mounting Secure screw clip mount
Environmental Fully Sealed IP66
Dimensions 300mm / 600mm / 1200mm / 5M lengths

Parts List

12VOLT OPTIONS
CLB300W/T4 300mm 12v LED Strip IP66 HPW silicone sealed - Blister
CLB600W/T4 600mm 12v LED Strip IP66 HPW silicone sealed - Blister
CLB1200W/T4 1200mm 12v LED Strip IP66 HPW silicone sealed - Blister
24VOLT OPTIONS
CLB300W/T4-24 300mm 24v LED Strip IP66 HPW silicone sealed - Blister
CLB600W/T4-24 600mm 24v LED Strip IP66 HPW silicone sealed - Blister
CLB1200W/T4-24 1200mm 24v LED Strip IP66 HPW silicone sealed - Blister



Download Specifications
