Description

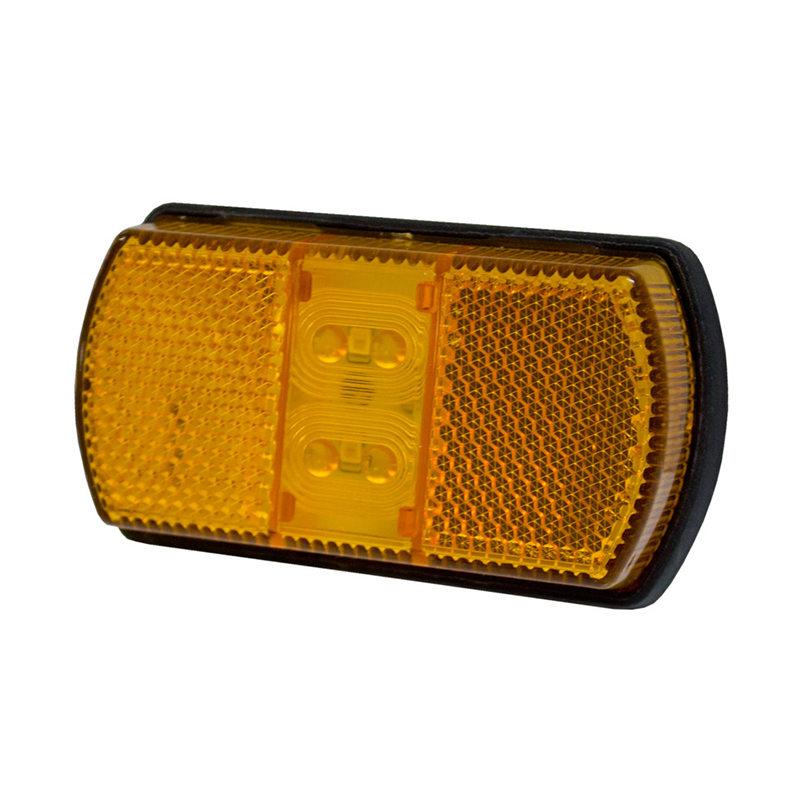

The new SM8 LED Series markers are designed for the direct replacement of it's existing incandescent models. The SM8 series is made for heavy duty use which features a high impact acrylic lens and strong ABS base, and is suited to OEM and commercial vehicle applications.Perfect for upgrading existing incandescent versions to LED.



Features

  • •9-33 Volt DC integrated circuitry
  • •Clip mount
  • •Retro-fit same incandescent style lamp series
  • •0.5m Cable
  • •Fully ADR compliant

Specifications

Specifications

Applications •Caravans •Trailers •Boat trailers •Light trucks
Voltage 9-33V DC VarivoltÆ
Functions Front Clearance Marker: Clear

Side Marker: Amber

Rear Position Marker: Red
Wattage 0.8W - all functions
Mounting Clip mount
Materials High impact acrylic lens
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard
Dimensions 90x50x22mm
ADR Compliance Front Clearance Marker: 49/01, Reflector 47/00

Side Marker: 45/01, Reflector 47/00

Rear Position Marker: 49/00, Reflector 47/00
Homologation Certification E-Mark
CRN Pending



Parts List

FM8CLED SM8 Series LED front clearance marker (Clear) - 9-33V
SM8ALED SM8 Series LED side marker (Amber) - 9-33V
RM8RLED SM8 Series LED rear position marker (Red) - 9-33V
BLISTER OPTIONS
FM8CLEDB SM8 Series LED front clearance marker (Clear) - 9-33V BLISTER PACK
SM8ALEDB SM8 Series LED side marker (Amber) - 9-33V BLISTER PACK
RM8RLEDB SM8 Series LED rear position marker (Red) - 9-33V BLISTER PACK



Download Specifications
