Product Description

Description

65 LED series markers are designed for applications where high performance and reliability is required. With wide angle optics and extended base design, the SM65LED series delivers maximum visibility in applications where multiple markers are installed.Providing a compliant solution for front end outline, rear position, supplementary indicator and side marker functions. These markers also feature a robust Smartclip™ base which is contoured to protect the main lens and LED module from extreme conditions.The 65 LED series is built for heavy duty use and suited to OEM and commercial vehicle applications.



Features

  • •Heavy duty LED marker
  • •Highly visibility design
  • •Protective base
  • •Smart Clip™ mounting
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Custom Builds
Functions Front Clearance Marker

Side Marker

Rear Position
Voltage 9-33V DC VarivoltÆ
Wattage 0.4W - all functions
Mounting Smart Clip™
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard
Dimensions 60x38x32mm
ADR Compliance Front Clearance Marker: 49/01

Side Marker: 45/01

Rear Position: 49/00
Homologation Certification E-Mark
CRN Pending

Parts List

FM65CLED 65 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M

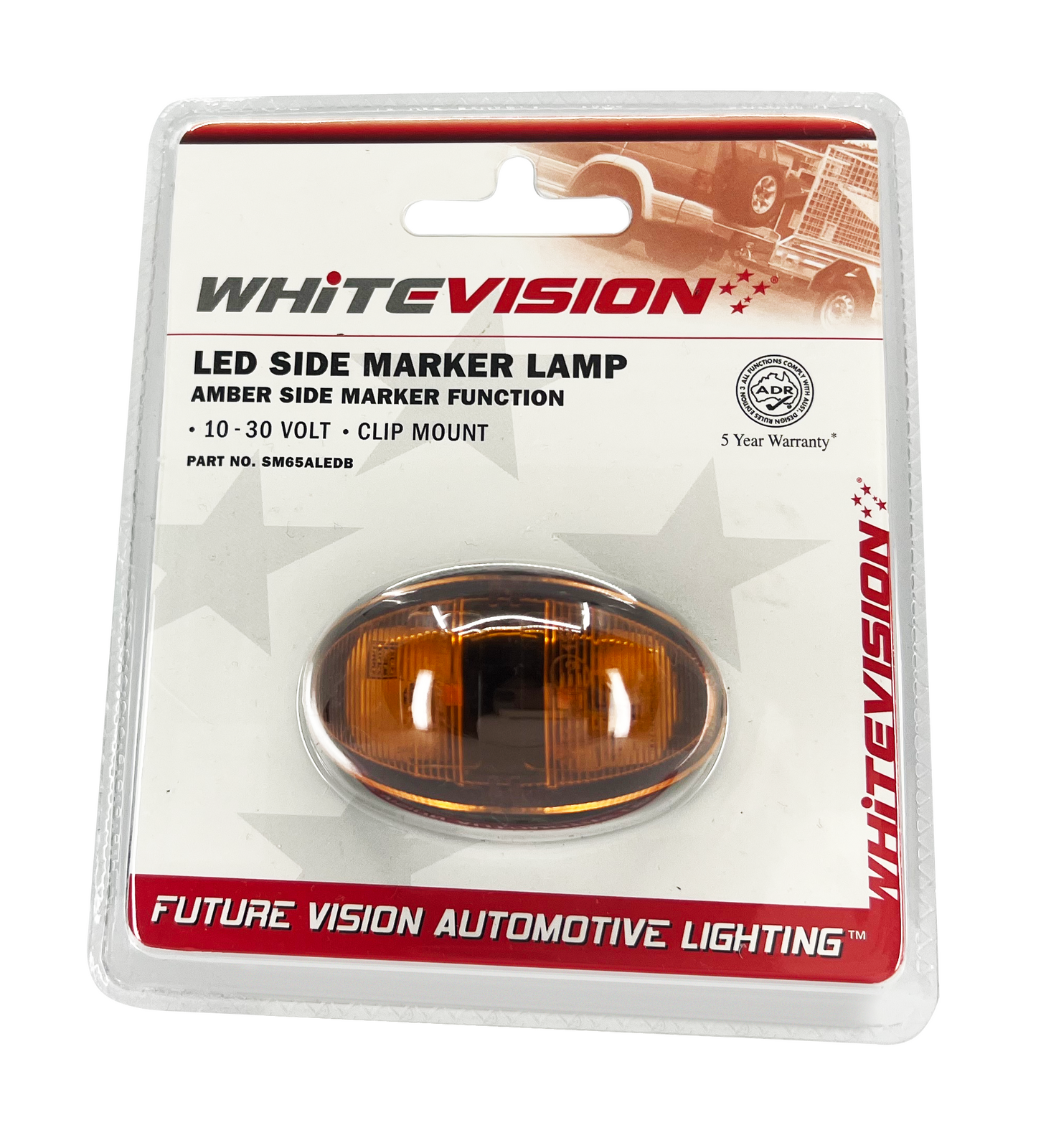

SM65ALED 65 Series Side Marker 9-33V Amber (Amber Lens) 0.5M
SM65RALED 65 Series Side Marker 9-33V Red / Amber (Clear Lens) 0.5M
RM65RLED 65 Series Rear Position Marker 9-33V Red (Red Lens) 0.5M
BLISTER OPTIONS
FM65CLEDB 65 Series Front Clearance Marker 9-33V Clear (Clear Lens) 0.5M BLISTER
SM65ALEDB 65 Series Side Marker 9-33V Amber (Amber Lens) 0.5M BLISTER
SM65RALEDB 65 Series Side Marker 9-33V Red / Amber (Clear Lens) 0.5M BLISTER
RM65RLEDB 65 Series Rear Position Marker 9-33V Red (Red Lens) 0.5M BLISTER
