Product Description

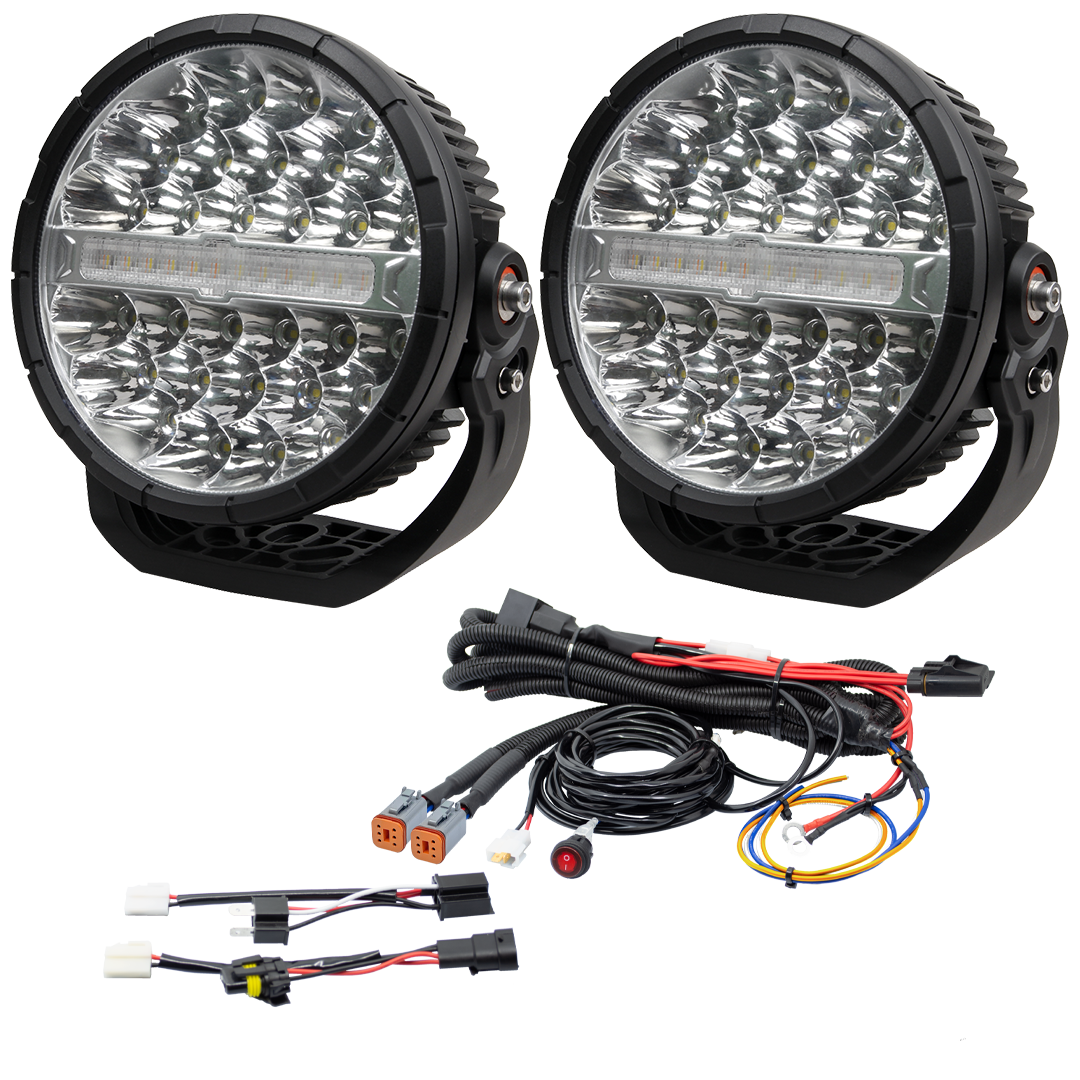

Built to withstand even the toughest conditions, the Rayzer™ LED driving lights are encased in a heavy-duty aluminium body with a high-resilience polycarbonate lens and connected by a 6-way DT connector making them ideal for heavy transport applications. These lights are also fully integrated with ECE-certified park, DRL, and indicator lights, ensuring safety and compliance with industry standards. The optional innovative 6-way Dual DT-style plug-and-play driving light wiring kit, features 12-24V operation, smart high beam signal detection and allows easy installation of all functions. Enlighten your night-time driving experience with Rayzer™ LED driving lights, designed to truly slice the night.



Features

  • • Precision LED beam technology for maximum illumination

  • • Available in 7” or 9” for immensive performance

  • • Heavy duty aluminium body with high resilience polycarbonate lens, made for heavy transport applications

  • • Integrated DRL, Indicator and Park Light

  • • Innovative 6 Way DT style wiring kit for easy installation of all functions.

  • • Certified ECE Compliance

Specifications

Specifications

Applications • Trucks • Buses and Coaches • Custom builds • Mining • 4×4 • Cars
Functions Driving light with integrated DRL
Voltage 9-33V Varivolt®
Wattage 7” 120W

9” 150W
Lumen 7” 12000lm

9” 15000lm
Lux 7” 1lx @750M

9” 1lx @950M
Mounting Heavy duty bracket 3 bolt
Environmental Fully sealed and waterproof IP69K



Parts List

LDL9700 7″ HD LED Driving Lights W/ PARK & DRL
LDL9900 9″ Series HD LED Driving Lights W/ PARK & DRL
