Product Description

Description

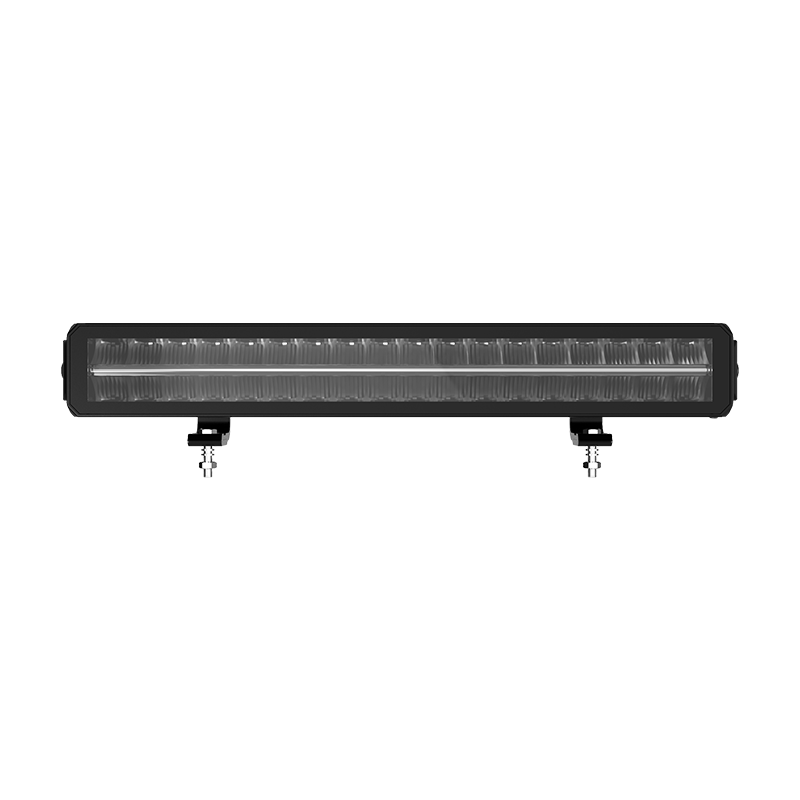

Rayzer™ Pro Series double row LED light bars use the latest free form optics to provide Superior lighting performance with a visually appealing style. The Rayzer™ Pro Seriesí ultra-bright light output using Broadbeam technology, achieves a long-reaching and wide consistent beam ideal for any situation where maximum illumination is required.

The Rayzer™ series features an integrated position / DRL light and amber warning function for commercial applications. Included is also a comprehensive stainless steel mounting kit. Constructed from high grade anodised aluminium, sealed to IP67 and fitted with a virtually indestructible polycarbonate lens Rayzer™ Series LED bars are truly built for the long haul.





Features

  • • Powerful combination beam
  • • Free form reflector technology for consistent light
  • • Heavy-duty commercial quality
  • • ECE Approved



Specifications

Specifications

Applications •Mining •4x4 •Cars
Functions Light Bar
Voltage 10-30V VarivoltÆ
Wattage 12î - 52W22î - 102W32î - 152W42î - 180W
Lumen 12î - 5300lm22î - 10500lm32î - 13680lm42î - 16200lm
Mounting Front or Rear Stud
Materials Lens ñ PCHousing ñ aluminium
Environmental IP67

Parts List

LLB2212 Rayzer 12î Double Row Light Bar, With Park and Fog 9-33V
LLB2222 Rayzer 22î Double Row Light Bar, With Park and Fog 9-33V
LLB2232 Rayzer 32î Double Row Light Bar, With Park and Fog 9-33V
LLB2242 Rayzer 42î Double Row Light Bar, With Park and Fog 9-33V
