Product Description

Description

With ultra heavy-duty construction, the new Perei 505 Series Jumbo range of combination lamps offers ultimate quality, durability and reliability.Designed specifically for heavy-duty applications these lamps feature high heat and enhanced UV protective coating making the unit highly durable in most harsh operating conditions.The triple module features a high strength ABS base with stop / rear position, rear direction indicator and reverse functions with integrated reflectors.This Series is specifically designed to suit OE and heavy vehicle applications.



Features

  • • Ultra heavy-duty construction
  • • Designed for harsh environments
  • • Modular LED system
  • • Enhanced chemical protection
  • • Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Trailers •Heavy Trailers •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage STOP: 2.4W

REAR POSITION: 0.4W/0.8W

INDICATOR: 2.8

REVERSE: 2.4
Mounting Front or rear Stud
Materials Lens ñ Polycarbonate

Housing ñ ABS/PC
Environmental IP67

Parts List

CRL505LEDB PEREI 505 Series Triple Jumbo Stop / Tail / Indicator 9-33V Blister

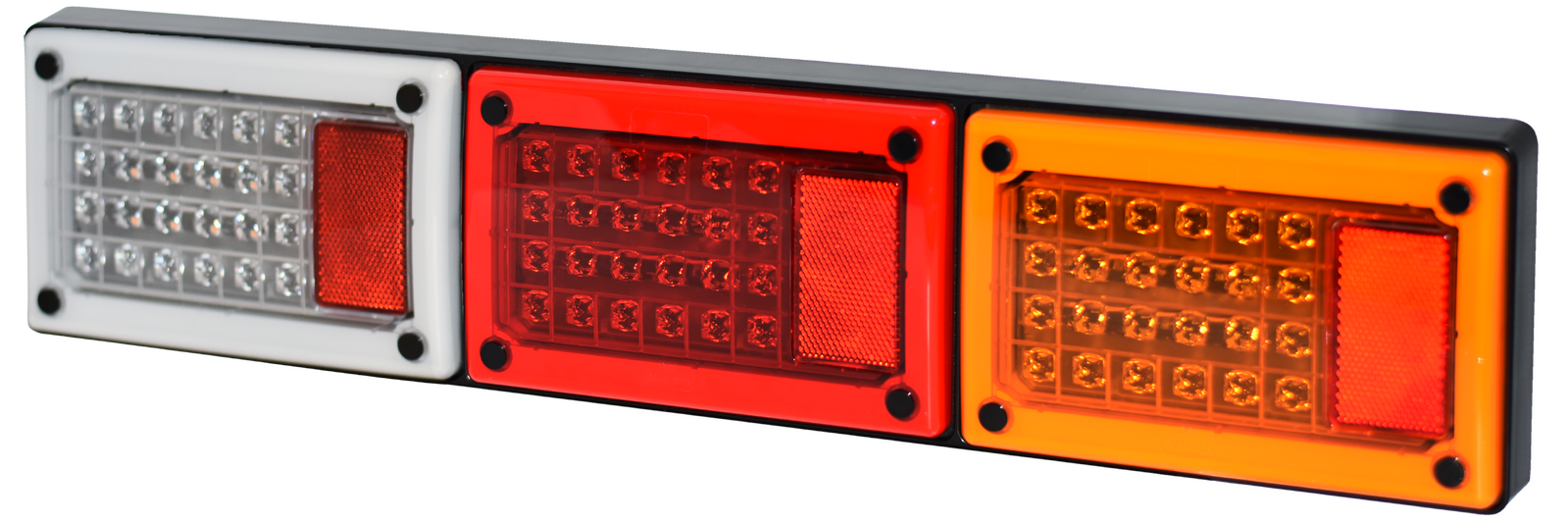

CRL505RLEDB PEREI 505 Series Triple Jumbo Stop / Tail / DI / Revserse 9-33V blister
SINGULAR MODULES
RL505SLEDB PEREI 505 Series Jumbo Stop / Tail Module 9-33V Blister

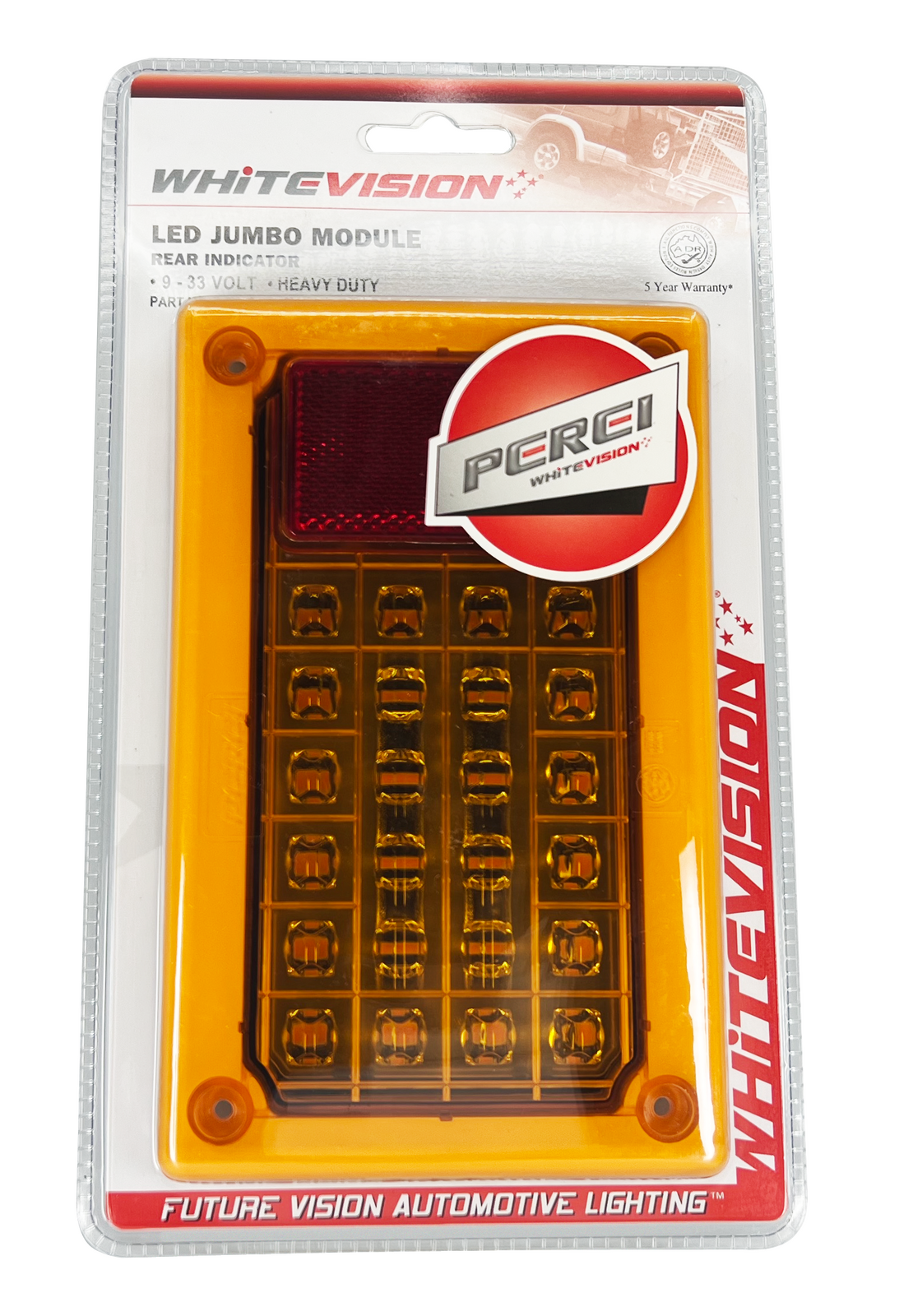

RL505DLEDB PEREI 505 Series Jumbo Indicator Module 9-33V Blister
RL505RLEDB PEREI 505 Series Jumbo Reverse Module 9-33V Blister
