Product Description

Description

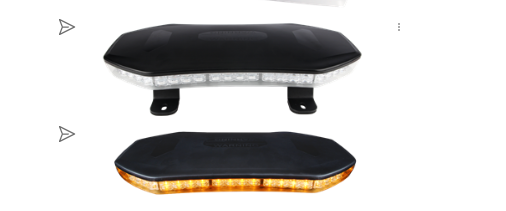

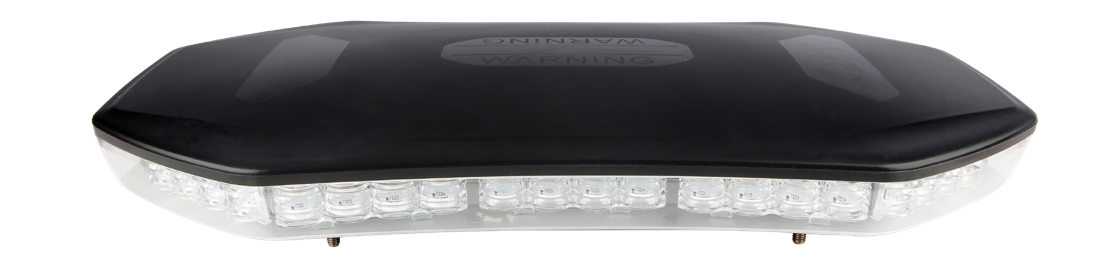

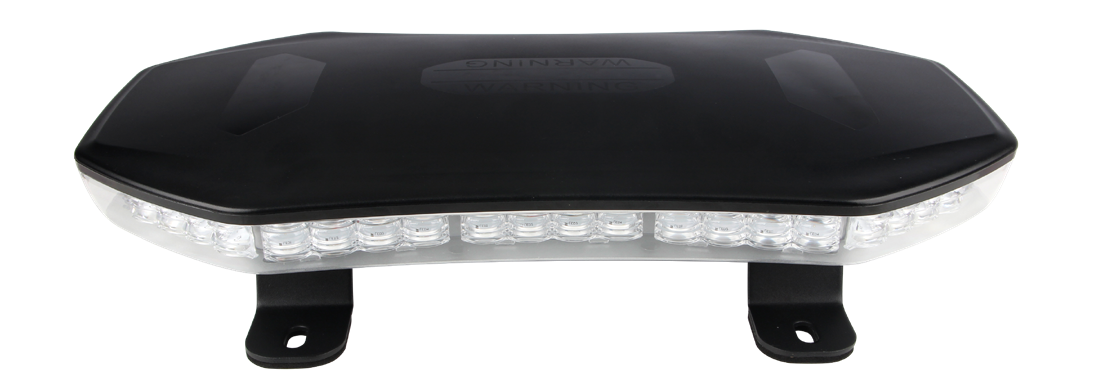

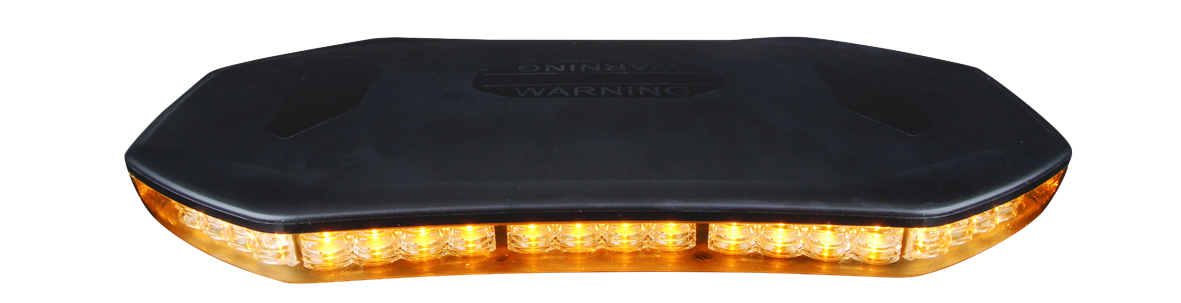

The BE405 series light bar is the next generation in high output LED warning lights for roof mount applications. Low profile with cutting edge designed optics, the aesthetics of this bar look the part in any installation. This light bar features 10 selectable flash with high power fast frequency flash modes and is single flash complaint with ECE R65 / SAE Class 1. The BE405 series light bar is also compliant with R10 and CISPR 25 Class 3 and with a voltage range of 10-30V DC, and fully sealed to IP69 this mini light bar is designed for commercial and industrial use where high quality standards matter



Features

  • • Low profile
  • • 10 flash options
  • • 10-30 Volt
  • • ECE Approvals

Specifications

Specifications

Voltage: 10-30 Varivolt®
Power: 33 W
Lens: Polycarbonate
Housing: Polycarbonate
Mounting Stud Mount
Environmental IP69K
Approvals: ECE R65 TA1 CISPR 25 CLASS 3 ECE R10

Flashing Modes

1 Slow Single Flash
2 Fast Single Flash
3 Triple Flash (Middle) + Triple Flash (L&R)
4 Rotation
5 Single Flash + Quintuple Flash
6 Single Flash + Triple Flash + Quintuple Flash
7 Triple Flash
8 Triple Flash (Middle) + Triple Flash (L&R) + Triple Flash (All)
9 Rotation + Triple Flash (Front) + Triple Flash (Back) + Triple Flash (L&R) + Triple Flash (All)
10 Triple Flash (Front) + Triple Flash (Back) + Triple Flash (Left) + Triple Flash (Right) + Triple Flash (All)

Parts List

BE405-ST Amber Stud Mount Warning Beacon
