Product Description

Description

Whitevision tail light upgrade kits inlcude everything you need to easy upgrade your vehicles lighting using our plug and play harnesses.

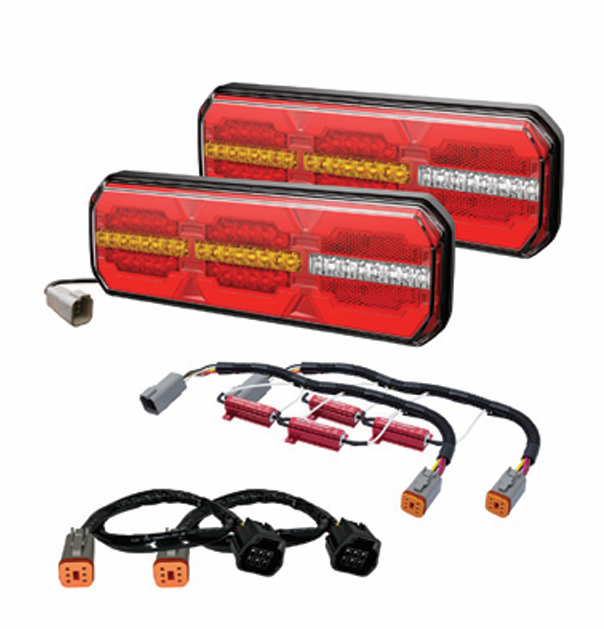

This Kit Inlcudes:

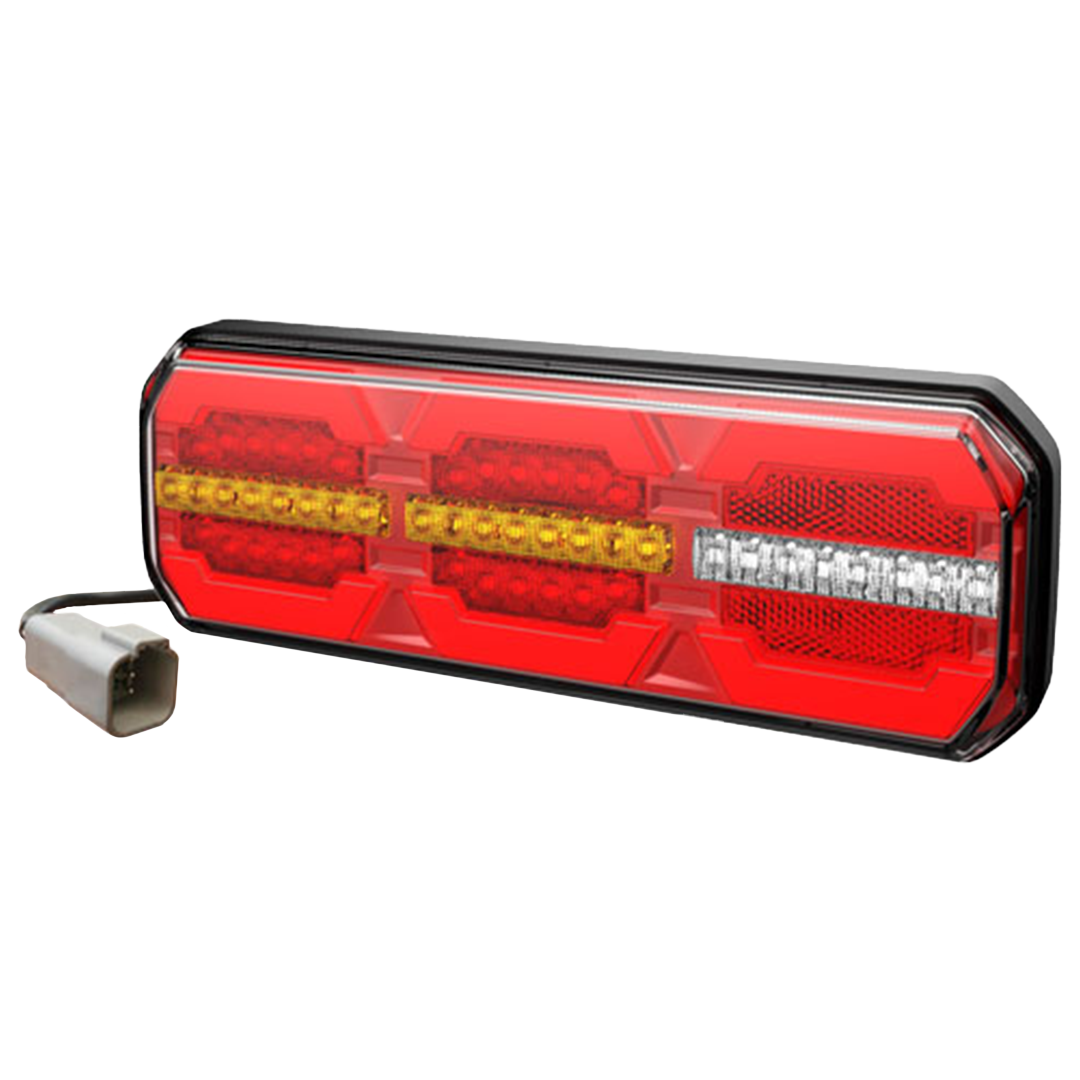

x 2 CRL285RLEDDT - Reverse Signal Lamp with DT connector

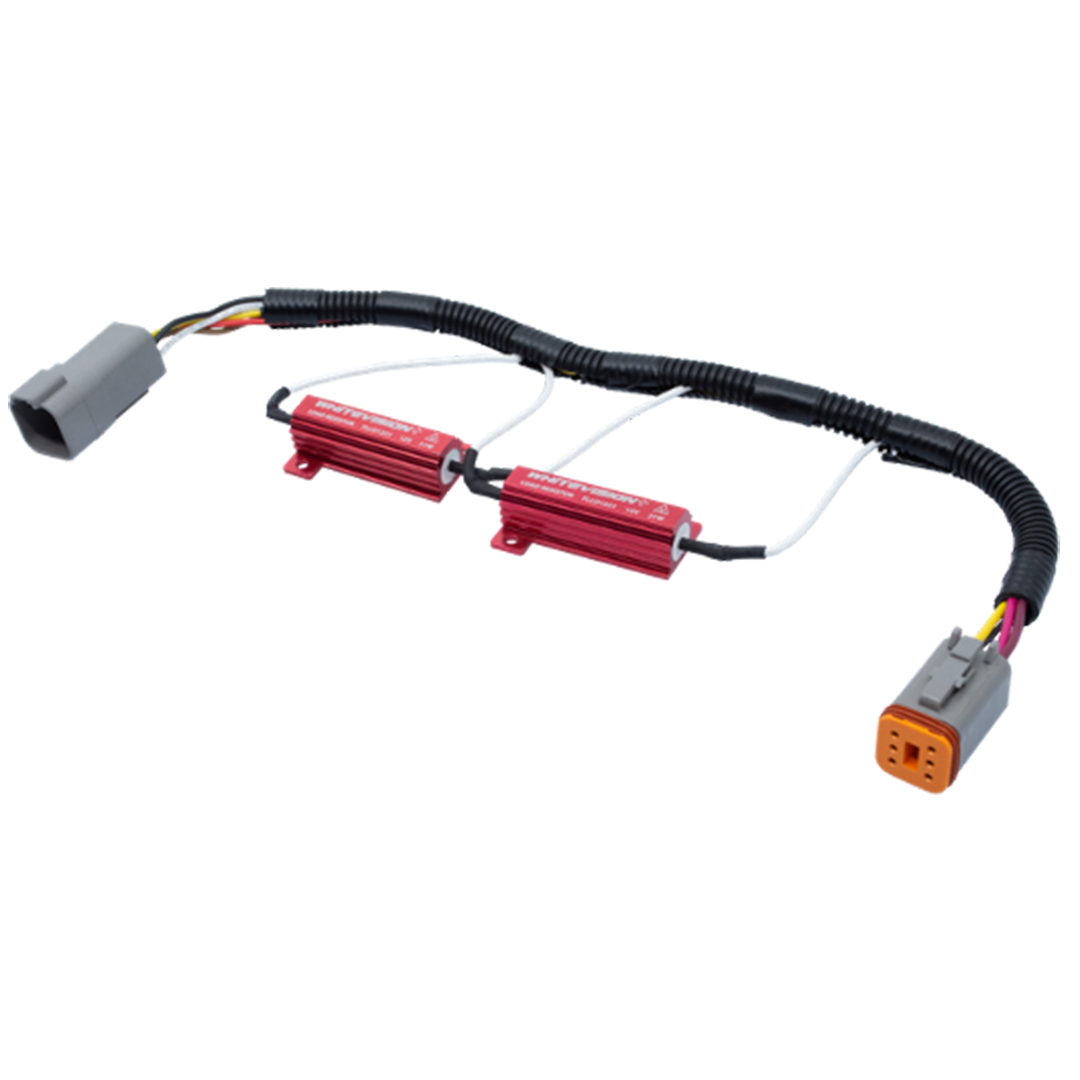

• WVCPRL100-12V - Resistor Loom Pair

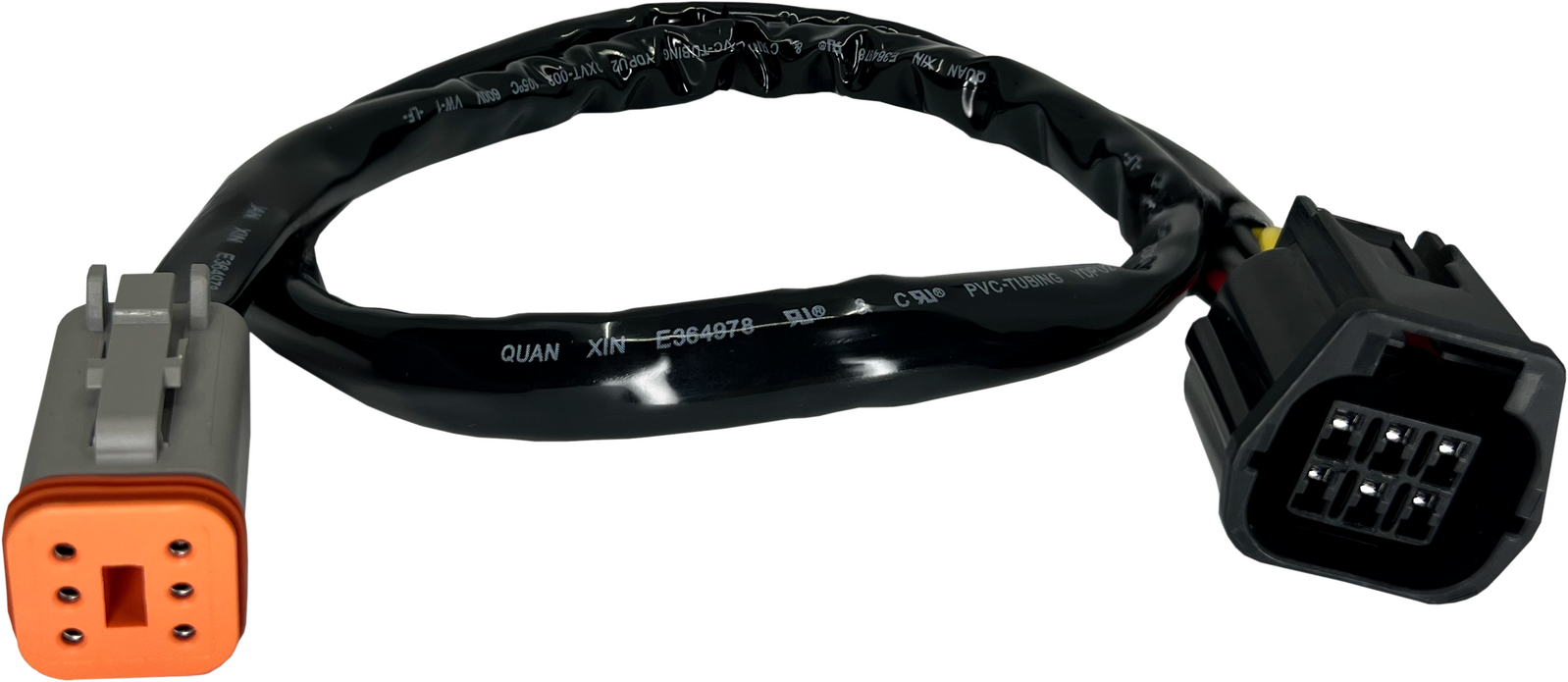

• WVCPTCH110 - Ranger/BT50 Patch Kit Patch Loom

The new CRL285 series is the next generation in multifunction rear combination signal lamps. Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions. Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.



Features

  • • All-in-one solution for rear lighting
  • • Highly styled, modern design
  • • Sequential indicator
  • • Heavy-duty Smart Clip™ base
  • • Fully ADR compliant

Specifications

Specifications

Voltage: 9-33V
Power:

Stop:3.5W,

Rear Position:2.5W,

Indicator:2.6W

Reverse:2.3W

Lens: Polycarbonate
Mounting: Heavy duty Smart Clip™ base Front or Rear
Environmental IP67 H
CTA:
CRL285 CTA-061025
CRL285R CTA-061024

Parts List

x2 - CRL285RLEDDT Reverse Signal Lamp with DT connector
WVCPRL100-12V Resistor Loom Pair
WVCPTCH110 Ranger/BT50 Patch Kit Pair
