Product Description

Description

The RL90LED series is a robust LED signal lamp designed specifically for heavy duty applications where high reliability is required. Featuring free form optics and styled lens design the RL90LED series is installed via rubber mounting insert for maximum protection against constant vibration environments. ADR approved for stop, rear position, direction indicator and reverse, these lamps are suitable for direct replacement or older style lamps of the same style. Suited to OEM and commercial vehicle applications.



Features

  • •Heavy duty LED signal lamp
  • •Rubber mount for high reliability
  • •Free form optic design
  • •Retrofits similar style lamps
  • •Fully ADR Approved

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Custom Builds
Functions Direction Indicator / Stop / Rear Position / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Directional Indicator: 3W

Stop: 3W

Rear Position: 0.4W

Reverse: 3W
Mounting Rubber insert
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 160x112x31.5mm
ADR Compliance Stop & Tail: 49/00 / Indicator: 6/00:Cat2a / Reverse: 1/00
CRN Direction Indicator: 46235

Stop: 46238

Rear Position: 46237

Reverse: 46236

Parts List

RL90DLED 90 Series Rear LED 9-33V Direction Indicator (Amber Lens) 0.4M
RL90SLED 90 Series Rear LED 9-33V Stop / Rear Position (Red Lens) 0.4M
RL90RLED 90 Series Rear LED 9-33V Reverse (Clear Lens) 0.4M
BLISTER OPTIONS

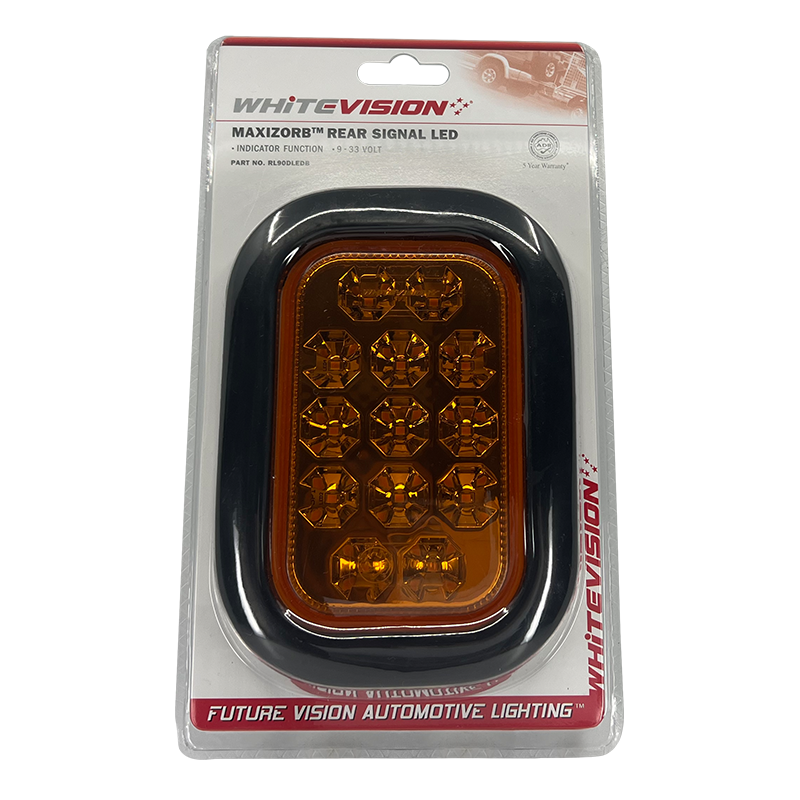

RL90DLEDB 90 Series Rear LED 9-33V Direction Indicator (Amber Lens) 0.4M - BLISTER
RL90SLEDB 90 Series Rear LED 9-33V Stop / Rear Position (Red Lens) 0.4M - BLISTER
RL90RLEDB 90 Series Rear LED 9-33V Reverse (Clear Lens) 0.4M - BLISTER
