Product Description

Description

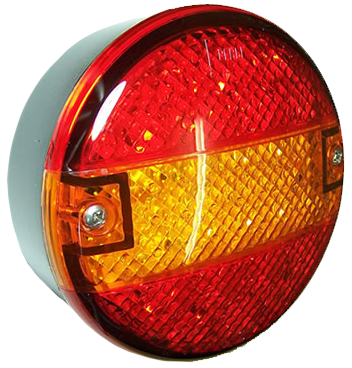

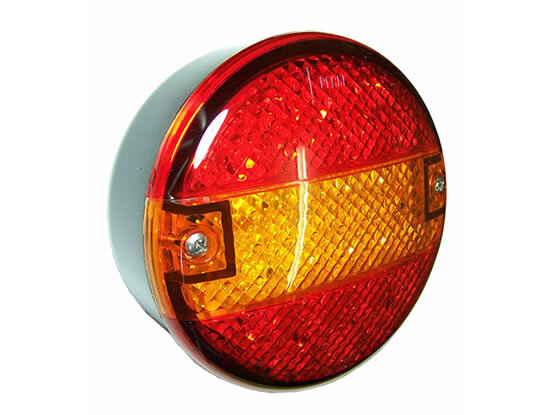

The CRL800 series LED lamp feature a crystal optic lens system providing a highly aesthetic design to match modern vehicle styles. This lamp comprises stop, rear position, rear direction indicator and reverse functions in three 140mm profile modules for enhanced signaling visibility and safety. Also features a triple modupod fitted with two CRL800LED modules, and one CRL800RV module for a fully compliant rear lighting solution.This lamp is well suited for OE, industrial and commercial applications.



Features

  • • Enhanced optics to match vehicle styling
  • • 140mm round module profile for high visibility
  • • 360 degree lamp and housing sealing
  • • Optional LED loading for compatibility
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Heavy Trailers •Dangerous Goods
Functions Stop / Rear Position / Rear Direction Indicator / Reverse
Voltage 9-33V DC VarivoltÆ / 24V only options
Wattage Stop: 4.92W @12V

Rear Position: 2.92W @12V

Rear Direction Indicator: 4.92W @12V

Reverse: 2.52W @12V
Mounting Surface Mount, Modular System
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.2M Per Module
Dimensions 452x167x65mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
CRN Certification CRL800LEDV; Stop: 29753 Rear Position: 29754 indicator: 29713
  RV800LED; 37612
  SL800LED; Stop 29714 / Rear Position 29783
  FL800LED; eMark

Parts List

CRL800LED Red/Amber 'Hamburger' LED Stop/Tail/Indicator
CRL888LED LED 'Hamburger' Lamp, 3 x Stop/Tail/Flasher
CRL888LEDRV LED 'Hamburger' Lamp, 2 x Stop/Tail/Flasher, 1 x Reverse
CRL888H 800 Series Three Pod Housing
FL800LED Amber 'Hamburger' LED Indicator Lamp 140mm Dia
SL800LED Red 'Hamburger' LED Stop/Tail Lamp
RV800LED Clear 'Hamburger' LED Reverse Lamp
