Product Description

Description

The all new CRL605LED Series Jumbo LED lamps deliver quality, performance and durability for heavy duty applications. Featuring high visibility optics and modular design, the CRL605LED series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Each module also incorporates an integrated reflector providing a complete compliant rear signalling solution. Constructed with ultra strong polycarbonate lenses with enhanced chemical protection, high reliability optics and toughened ABS base the CRL605LED series is designed to handle the toughest of conditions under constant operation. Suited to OEM and commercial vehicle applications.



Features

  • •Heavy duty rear Jumbo lamp
  • •Modular design with security caps
  • •Integrated reflectors
  • •Slimline profile
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Dangerous Goods •Rigid Bodies •Buses & Coaches •Trailers •Heavy Trailers•Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Stop:3W / Rear Position:0.4W Indicator:3W / Reverse:2.5W
Mounting Rear Bolt Mount
Materials Polycarbonate Lens ABS Body / Modular heavy duty ABS base
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 601x131x42mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse: 01/00, Rear Retro Reflector:47/00
CRN Stop - 48002

Tail - 48003

Direction - 48001

Reverse - 48061

Reflector - 48284

Parts List

CRL205DLED 205 Series H/Duty LED Jumbo 9-33V Single Indicator Module with BLK Base
CRL205SLED 205 Series H/Duty LED Jumbo 9-33V Single Stop / Tail Module with BLK Base
CRL205RLED 205 Series H/Duty LED Jumbo 9-33V Single Reverse Module with BLK Base
CRL605LED 605 Series H/Duty LED Jumbo 9-33V Stop / Tail / Indicator Module, BLK Base
CRL605RLED 605 Series H/Duty LED Jumbo 9-33V Stop / Tail / Indicator / Reverse, BLK Base
REPLACEMENT MODULES

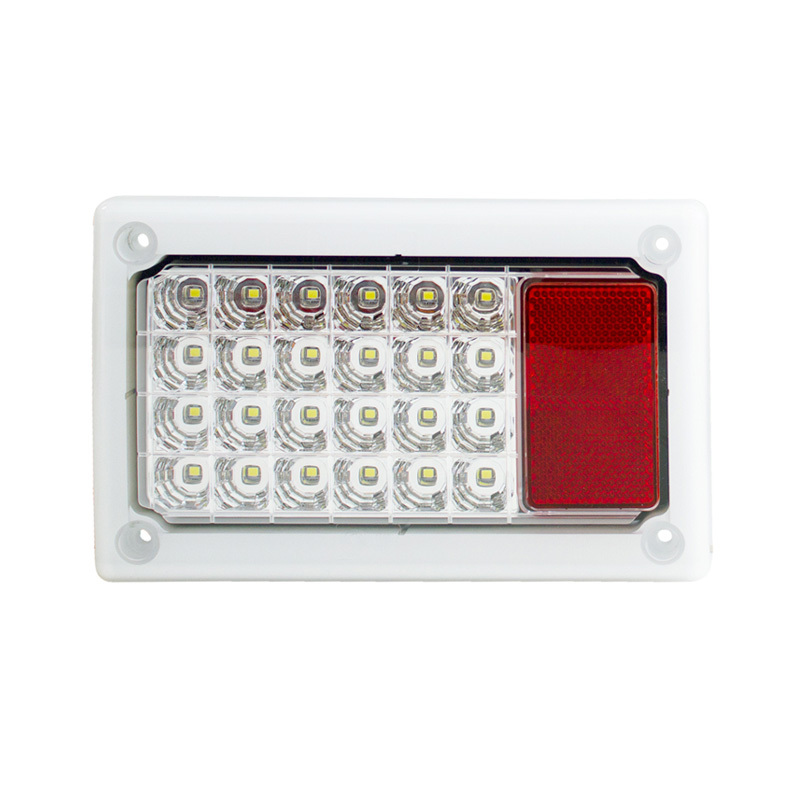

RL195DLED H/Duty LED Jumbo Series 9-33V Single Indicator Replacement Modules
RL195SLED H/Duty LED Jumbo Series 9-33V Single Stop / Tail Replacement Module
RL195RLED H/Duty LED Jumbo Series 9-33V Single Reverse Replacement Module
