Product Description

Description

The all new CRL405LED Series Jumbo LED lamps deliver quality, performance and durability for heavy duty applications. Featuring high visibility optics and modular design, the CRL405LED series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Each module also incorporates an integrated reflector providing a complete compliant rear signalling solution. Constructed with ultra strong polycarbonate lenses with enhanced chemical protection, high reliability optics and toughened ABS base the CRL605LED series is designed to handle the toughest of conditions under constant operation. Suited to OEM and commercial vehicle applications.



Features

  • •Heavy duty rear Jumbo lamp
  • •Modular design with security caps
  • •Integrated reflectors
  • •Slimline profile
  • •Fully ADR compliant

Specifications

Specifications

Applications •Dangerous Goods •Trucks •Rigid Bodies •Buses & Coaches •Trailers •Heavy Trailers •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Stop: 3W

Rear Position: 0.4W

Indicator: 3W
Mounting Rear Bolt Mount
Materials Polycarbonate Lens ABS Body / Modular heavy duty ABS base
Environmental IP67
Cable Length 0.5M
Dimensions 405x131x40mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00
CRN Stop - 48002, Tail - 48003, Direction - 48001, Reflector - 48284

Parts List

CRL405LED 405 Series H/Duty LED Jumbo 9-33V Twin Stop / Tail / indicator Modules BLK Base
REPLACEMENT MODULES

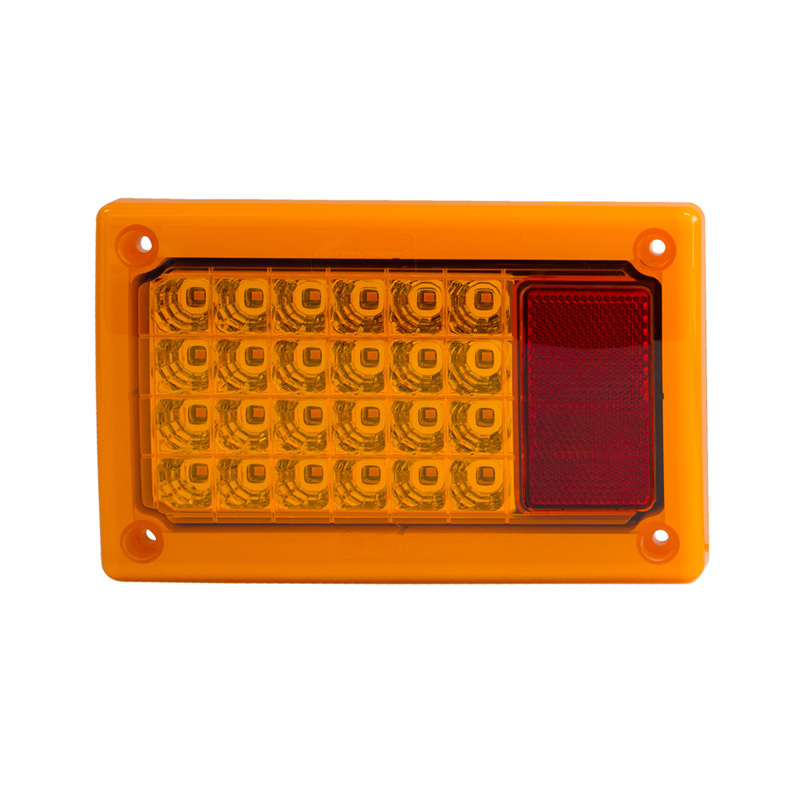

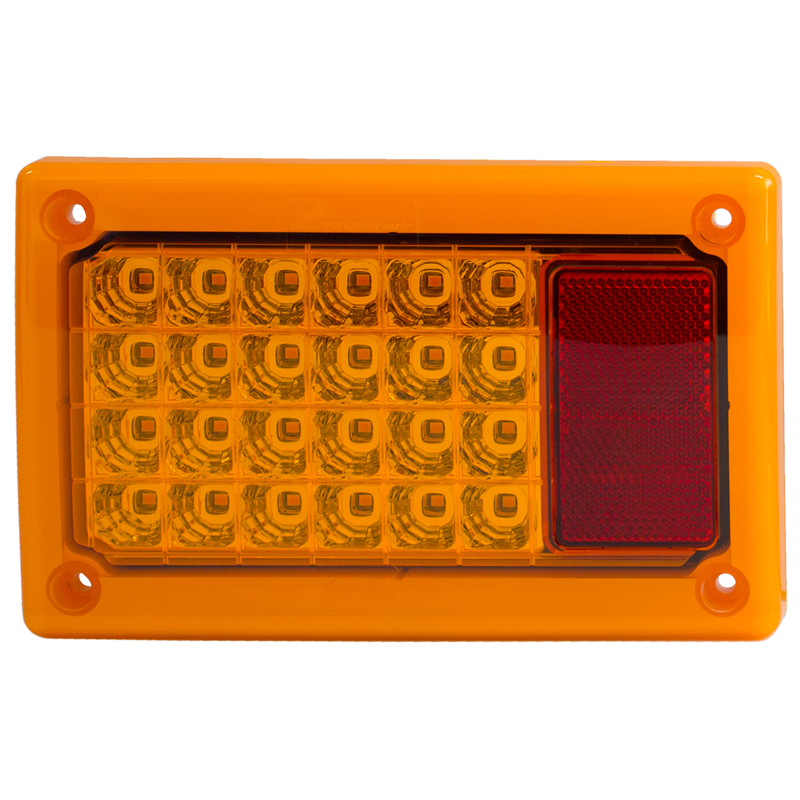

RL195DLED H/Duty LED Jumbo Series 9-33V Single Indicator Replacement Modules
RL195SLED H/Duty LED Jumbo Series 9-33V Single Stop / Tail Replacement Module
RL195RLED H/Duty LED Jumbo Series 9-33V Single Reverse Replacement Module
RL205DLED 605 Series LED DIRECTIONAL INDICATOR Insert Module 9 - 33VW/ Single Black Base
RL205SLED 605 Series LED STOP / TAIL Insert Module 9 - 33VW/ Single Black Base
RL205RLED 605 Series LED REVERSE Insert Module 9 - 33VW/ Single Black Base
