Product Description

Description

The 95 series LED modules feature a crystal optics lens design and a common dimensional profile enabling the lamp to suit a wide variety of applications. This lamp can be used with modupods to create a custom combination solution or individually as a flush mount with a surface mount option using the single modupod plinth. The dimensions of the 95 series also allow for retrofit upgrade or replacement of similar lamps. Suited to OE and heavy-duty applications. Connector options are also available.



Features

  • • Crystal optic lens for common visual appearance across all model functions
  • • Dimensional profile suits many applications & retrofit situations
  • • Can create combination lamps with monopods
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Custom Builds
Functions Stop / Rear Position / Rear Direction Indicator / Reverse
Voltage 12V or 24V options
Wattage Stop:4.92W@12V

Rear Position:2.92W@12V

Rear Direction Indicator:4.92W@12V
Mounting Surface mount or Modupod
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M / 9M Optional
Dimensions 95x40mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
Homologation Certification ECE (Emark)

Parts List

FL24LED-12V 95mm Series Module Front Direction Indicator 12V 0.5M - Box
FL24LED-24V 95mm Series Module Front Direction Indicator 24V 0.5M - Box

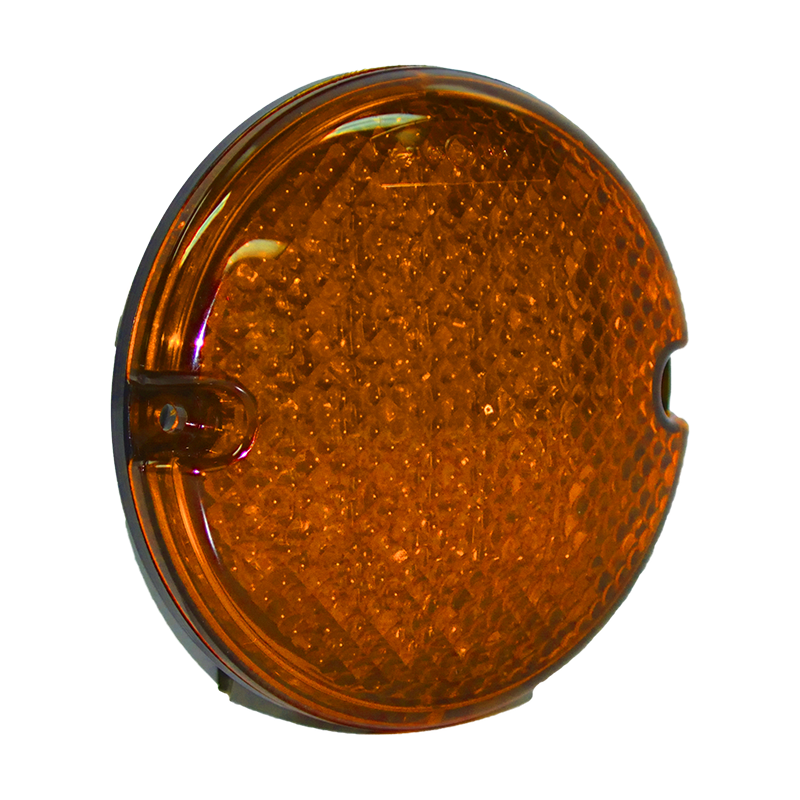

FL25LED-12V 95mm Round Rear Direction Indicator Module 12V - Box
FL25LED-24V 95mm Round Rear Direction Indicator Module 24V - Box
SL9LED-12V 95mm Round Stop / Rear Position Module 12V - Box
SL9LED-24V 95mm Round Stop / Rear Position Module 24V - Box
GR25LED-24 95mm Green Round LED Lamp 24v
RL800LED-12V 95mm Round Reverse Module 12V - Box
RL800LED-24V 95mm Round Reverse Module 24V - Box
