Product Description

Description

The 95 series LED modules feature crystal optics lens design and common dimensional profile enabling the lamp to suit a wide variety of applications. This lamp can be used with modupods to create a custom combination solution or individually as flush mount with a surface mount option using the single modupod plinth. The dimensions of the 95 series also allows for retrofit upgrade or replacement of similar lamps. Suited to OE and heavy duty applications. Connector options also available.



Features

  • • Crystal optic lens for common visual appearance across all model functions
  • • Dimensional profile suits many applications & retrofit situations
  • • Can create combination lamps with modupods
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Custom Builds
Functions Stop / Rear Position / Rear Direction Indicator / Reverse
Voltage 12V or 24V options
Wattage Stop:4.92W@12V

Rear Position:2.92W@12V

Rear Direction Indicator:4.92W@12V
Mounting Surface mount or Modupod
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M / 9M Optional
Dimensions 95x40mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00
Homologation Certification ECE (Emark)

Parts List

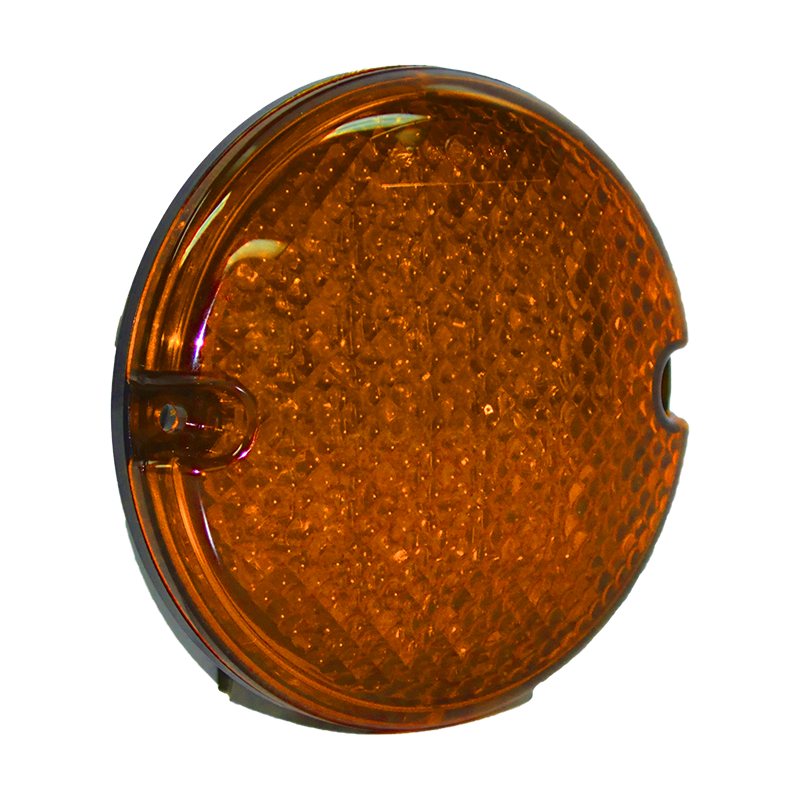

FL24LED-12V 95mm Series Module Front Direction Indicator 12V 0.5M - Box
FL24LED-24V 95mm Series Module Front Direction Indicator 24V 0.5M - Box
FL25LED-12V 95mm Round Rear Direction Indicator Module 12V - Box
FL25LED-24V 95mm Round Rear Direction Indicator Module 24V - Box
SL9LED-12V 95mm Round Stop / Rear Position Module 12V - Box
SL9LED-24V 95mm Round Stop / Rear Position Module 24V - Box
GR25LED-24 95mm Green Round LED Lamp 24v
RL800LED-12V 95mm Round Reverse Module 12V - Box
RL800LED-24V 95mm Round Reverse Module 24V - Box
