Product Description

Description

The WV400 Series features advanced LED optical free form reflector technology to achieve a highly styled robust lamp that is well suited to modern vehicle and trailer designs. The WV400 series is made for heavy duty use and includes a high impact lens with enhanced chemical protection. The model comprises full rubber grommet floating mounting for high shock and vibration situations. Suited to retrofit and OE commercial applications.

Features

•Advanced LED free form optics•Modern design which matches vehicle styling•Designed for heavy duty use•Grommet mounting for shock & vibration•Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Heavy Trailers •Trailers •RV
Functions Stop / Rear Position
Voltage 9-33V DC VarivoltÆ
Wattage Stop: 3W

Rear Position: 1.2W
Mounting Rubber Grommet or Metal Flange
Materials Lens: Polycarbonate with ECP Base: Heavy Duty ABS
Environmental IP67 Hermetically Sealed
Cable Length 0.4M
Dimensions 102mmx32mm
ADR Compliance Stop:49/00

Rear Position:49/00
CRN Certification Pending

Parts List

WV400STG WV400 Series 4" Stop / Rear Position Grommet 9-33V 0.4M - Box
WV400VSTF LED Lamp Round Reverse with Flange 9-33V
WV400G Rubber Grommet suit WV400 Series

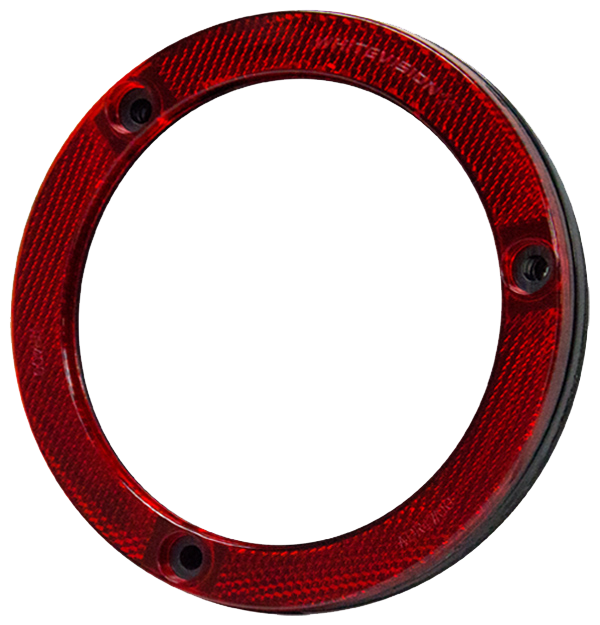

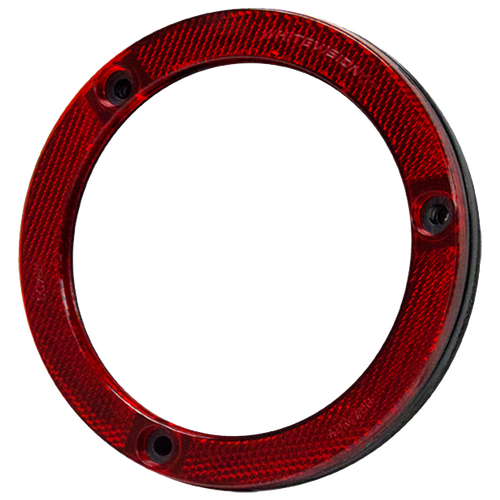

WV400R Red Reflector for WV400LED Series
WV400CR Chrome Ring Rim Suit WV400 Flange Type Lamp Not Included

Download Specifications
