Product Description

Description

The RL400 series is a robust LED signal lamp designed specifically for heavy duty applications where high reliability is required. Featuring free form optics and styled lens design. The RL400 series is installed via rubber mounting insert for maximum protection against constant vibration environments. ADR compliant for direction indication, these lamps are suitable for direct replacement or older style lamps of the same style. Suited to OEM and commercial vehicle applications



Features

  • •Heavy duty LED signal lamp
  • •Rubber mount for high reliability
  • •Free form optic design
  • •Retrofits similar style lamps
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Heavy Trailers •Cars •Classic Cars •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Stop:2.4W

Rear Position:0.5W

Indicator:2W

Reverse: 2W
Mounting Rubber grommet insert
Materials High impact acrylic lens, ABS Body
Environmental IP68 Hermetically Sealed
Cable Length 0.5M twin core, sheathed
Dimensions 110mm insert diameter, 140mm overall diameter
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse: 01/00, Rear Retro Reflector:47/00
CRN Stop - 46518, Tail - 47527, Direction - 47517, Reverse - 47502

Parts List

COLOURED LENS OPTIONS

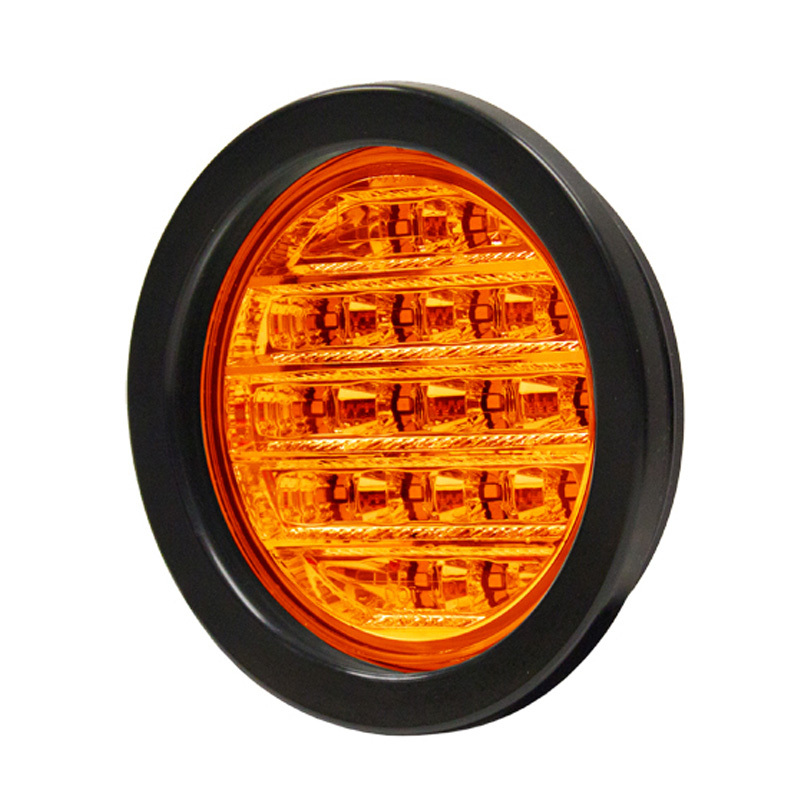

RL400DG 400 Series Rear LED 9-33V Direction Indicator (Amber Lens) 0.5M
RL400SG 400 Series Rear LED 9-33V Stop / Tail (Red Lens) 0.5M
RL400RG 400 Series Rear LED 9-33V Reverse (Clear Lens) 0.5M
CLEAR LENS OPTIONS
RL400DCG 400 Series Rear LED 9-33V Direction Indicator (Clear Lens) 0.5M
RL400SCG 400 Series Rear LED 9-33V Stop / Tail (Clear Lens) 0.5M
