Product Description

Description

The new CRL350 series is the next advancement in automotive LED lighting technology. Featuring high visibility optics and modular design, the CRL350 series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Constructed with a polycarbonate lens, heavy duty ABS base, and front mounting points, makes it a very versatile lamp that would suit almost any rear signalling application.



Features

  • • Stop / Tail / DI / Revserse / Reflector

  • • Heavy duty LED signal lamp

  • • Front Mount

  • • Free form optic design

  • • ADR and CTA approved

Specifications

Specifications

Voltage: 9-33V Varivolt
Power:

Stop: 2.4W

Tail: 0.5W

Indicator: 2W

Reverse: 2W

Lumen:: Front Screw Mount
Lens: Polycarbonate
Housing: ABS
Mounting: Rubber Insert
Environmental: IP68
CTA:
RL400RG CTA-060508
RL400DG CTA-060509
RL400SG CTA-060514
RL400SCG CTA-060515
RL400DCG CTA-060516
WV400R CTA-060503

Parts List

COMBINATION LAMPS

BLACK BASE

MODULE CONTENTS
CRL350LED Combo Stop/ Tail/ Flasher 2 x RL400SG 1 x RL400DG
CRL350RLED Combo Stop/ Tail/ Flasher/ Reverse 1 x RL400SG 1 x RL400DG 1 x RL400RG
CRL350CLEDB Clear Lens Combo Stop/ Tail/ Flasher 2 x RL400SCG 1x RL400DCG
CHROME

CHROME
CRL350LEDC Combo Stop/ Tail/ Flasher 2 x RL400SG 1 x RL400DG
CRL350RLEDC Combo Stop/ Tail/ Flasher/ Reverse 1 x RL400SG 1 x RL400DG 1 x RL400RG
CRL350CLEDC Clear Lens Combo Stop/ Tail/ Flasher 2 x RL400SCG 1x RL400DCG
MODULAR INSERTS

RL400DCG Rear FLASHER Lamp: CLEAR LENS RL400DG Rear FLASHER Lamp: AMBER LENS
RL400SCG Rear STOP / TAIL Lamp: CLEAR LENS RL400SG Rear STOP / TAIL Lamp: RED LENS
RL400RG Rear REVERSE Lamp WV400R Red Reflector ring

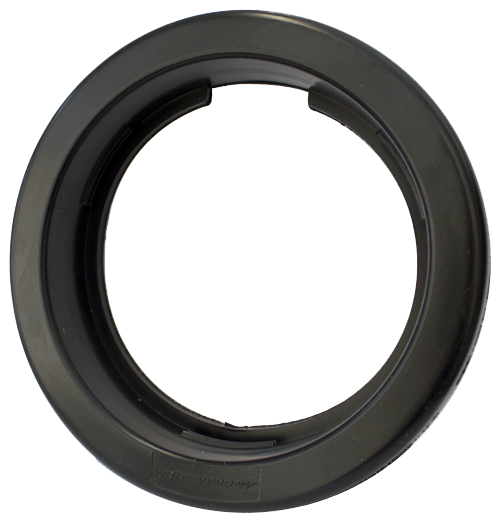

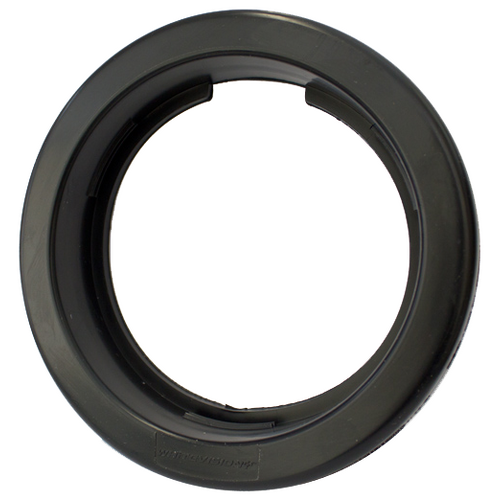

WV400G Spare Rubber Grommet Suite
