Product Description

Description

Designed with a smart and modern slimline look, the 360 Series are a robust multifunction lamps that can be mounted in areas where space is limited.Featured 10 - 33 VarivoltÆ DC integrated circuitry technology, incorporating stop, tail, indicator and reverse functions providing an all in one rear signal solution.The Series is fully ADR compliant, making it the complete package, perfectly suited to OEM and commercial vehicle applications.



Features

  • •Slim line design - multifunctions
  • •10 - 30 Varivolt
  • •Surface mounting
  • •Available in Black or Chrome Base
  • •Fully ADR compliant

Specifications

Specifications

Applications •Caravans & RV • Light Trucks & Trailers • Utes • Custom Builds
Functions Stop / Tail / Indicator / Reverse Functions
Voltage 10-30V DC VarivoltÆ
Wattage Stop: 3W / Tail: 0.3W / Indicator: 1.5W / Reverse: 1.5W
Mounting Surface mount, Screw on
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 400x32x17mm
ADR Compliance Stop & Tail: 49/00 / Indicator: 6/00 / Reverse: 1/00

Parts List

BLACK BASED OPTIONS

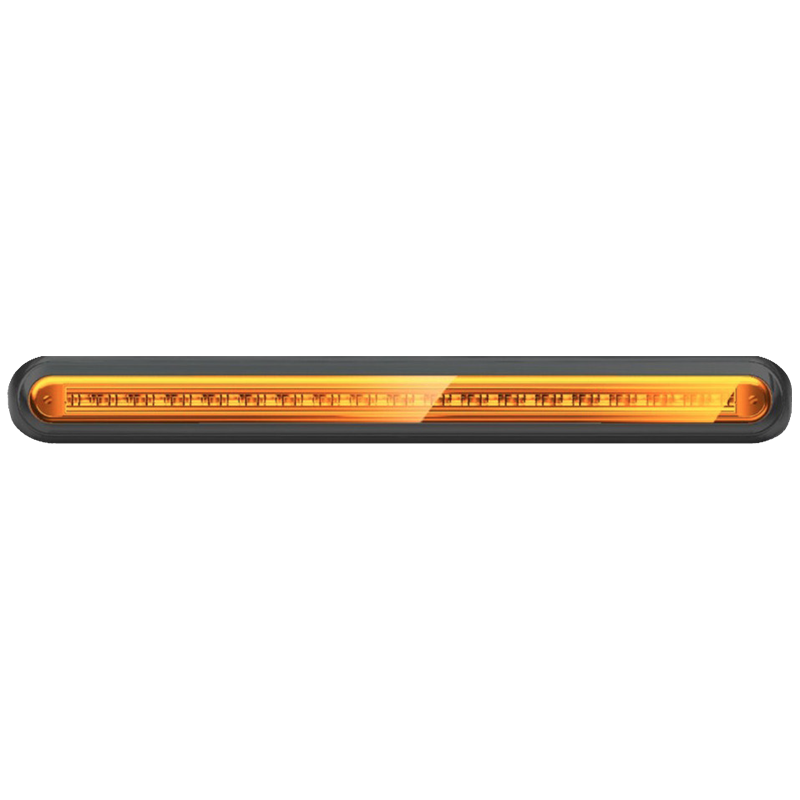

RL360DLEDB 360 SlimLine Rear Indicator Lamp 10-30V - BLACK BASE
RL360SLEDB 360 SlimLine Stop/Rear Position Lamp 10-30V - BLACK BASE
RL360SDLEDB 360 SlimLine Stop/Rear Position/Indicator Lamp 10-30V - BLACK BASE
RL360RLEDB 360 SlimLine Rear Reverse Lamp 10-30V - BLACK BASE
CHROME BASED OPTIONS
RL360DLEDC 360 SlimLine Rear Indicator Lamp 10-30V - CHROME BASE
RL360SLEDC 360 SlimLine Stop/Rear Position Lamp 10-30V - CHROME BASE
RL360SDLEDC 360 SlimLine Stop/Rear Position/Indicator Lamp 10-30V - CHROME BASE
RL360RLEDC 360 SlimLine Rear Reverse Lamp 10-30V - CHROME BASE



Download Specifications
