Product Description

Description

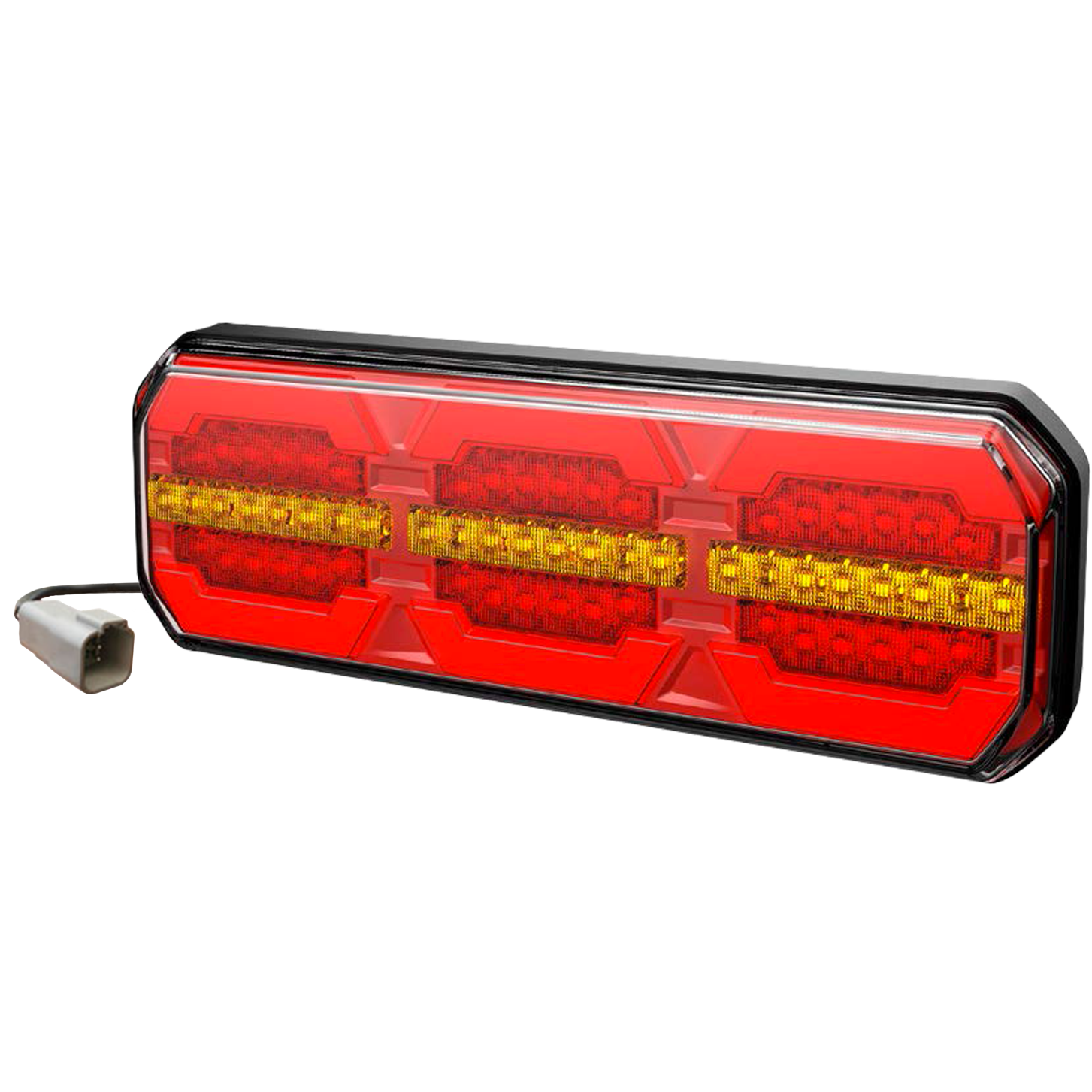

The new CRL285 series is the next generation in multifunction rear combination signal lamps.Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.



Features

  • • All in one solution for rear lighting
  • • Highly styled, modern design
  • • Diffused rear position•
  • • Sequential indicator
  • • Heavy duty Smart Clip™ base
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Utes •Custom Builds
Functions Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Stop:3.5W

Rear Position:2.5W

Indicator:2.6W

Reverse:2.3W
Mount Front or Rear Stud Mount
Materials Polycarbonate Lens & Base
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard
Dimensions 283 x 100 x 33mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00
CRN Pending

Parts List

CRL285LED 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BOX
CRL285LEDB 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BLISTER
CCRL285RLED 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BOX
CCRL285RLEDB 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BLISTER
