Product Description

Description

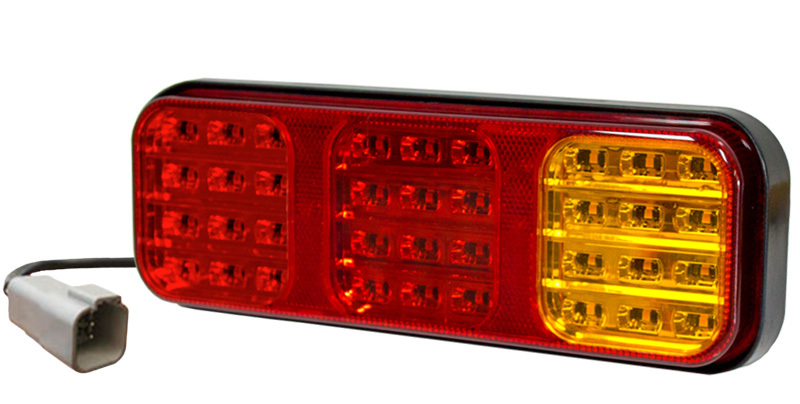

The CRL280LED series is the next generation in multifunction rear combination signal lamps. Delivering highly styled optics and unique lens design, this lamp provides a fully compliant rear lighting solution for stop, rear position, direction indicator, reverse and reflector functions. Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL280LED series is designed for high reliability and performance and well suited to OEM and commercial vehicle applications.



Features

  • • Full function LED combination lamp
  • • Highly styled optical design
  • • All in one solution for rear lighting
  • • Heavy duty Smart Clip™ base
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Utes •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reverse / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Stop Lamp:3W

Rear Position:0.5W

Direction Indicator:3W

Reverse:2.5W
Mounting Heavy duty Smart Clip™ base
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 284x100x37mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00, Reverse:1/00
CRN Pending

Parts List

CRL280LED 280 Series Combination LED 9-33V Stop / Tail / Indicator / Reflector 0.5M - Box
CRL280LEDB 280 Series Combination LED 9-33V Stop / Tail / Indicator / Reflector 0.5M - Blister
CRL280RLED 280 Series Combination LED 9-33V Stop / Tail / Indicator / Reflector / Reverse 0.5M - Box
CRL280RLEDB 280 Series Combination LED 9-33V Stop / Tail / Indicator / Reflector / Reverse 0.5M - Blister
