Product Description

Description

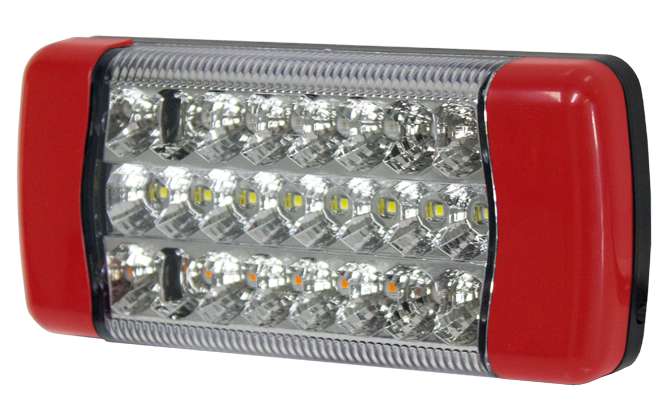

The CRL220LED series is a multifunction rear combination lamp featuring advanced LED optical free-form reflector technology to achieve a highly styled robust lamp that can be customized to match modern vehicle and trailer designs. The CRL220LED series is made for heavy-duty use and includes a high-impact polycarbonate lens and strong ABS Base. ADR-compliant for stop, rear position, direction indicator and reverse in a single compact package, the CRL220 series uses SmartClip™ end covers which offer upgradable options. This feature allows for custom options including colored end clips, integration clips that combine two or three lamps as one, and end reflectors for a fully compliant rear lighting solution. Suited to OEM and commercial applications.



Features

  • • Free-form optics
  • • High-reliability design
  • • Innovative end clip upgrades
  • • Easy customizing for specific applications
  • • Fully ADR compliant

Specifications

Specifications

Voltage: 9-33V
Power:

Stop:3W

Rear:0.4W

Indicator:3W

Reverse:2.5W

Lens: Polycarbonate
Mounting: Base mount with Smart Clip™ covers
Environmental: IP67
CTA:
CRL220 CTA-060795
CRL220R CTA-060800
CRN Pending

Parts List

CRL220LED 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Box
CRL220LEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Blister
CRL220RLED 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Box
CRL220RLEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Blister
