Product Description

Description

The RL180 Series features advaced LED optical free form reflector technology to achieve a highly styled robust lamp that can be customised to match modern vehicle and trailer designs. The RL180 series is made for heavy duty use and includes a high impact polycarbonate lens and strong ABS Base.Fully ADR compliant for stop, rear position, direction indicator and reverse the RL180 series uses smart clip end covers which for for a fully compliant rear lighting solution.Suited to OEM and commercial applications.



Features

  • •Free form optics
  • •High reliability design
  • •Innovative end clip upgrades
  • •Easy customised for specific applications
  • •Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Custom Builds
Functions Directional Indicator /Stop / Rear Position / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Indicator: 3W

Stop: 3W

Rear Position: 0.4W

Reverse: 2.5W
Mounting Base mount with Smart Clip™ covers
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 177x100x31mm
ADR Compliance Rear Direction Indicator: 6/00:Cat2a

Stop & Rear Position:49/00

Reverse:1/00
CRN RL180DLED: 46232

RL180RLED: 46233

RL180SLED: 46234

Parts List

RL180DLED 180 Series Rear LED Directional Indicator Lamp 9-33V 0.5M
RL180SLED 180 Series Rear LED Stop / Position Lamp 9-33V 0.5M
RL180RLED 180 Series Rear LED Reverse Signal Lamp 9-33V 0.5M
BLISTER OPTIONS
RL180DLEDB 180 Series Rear LED Directional Indicator Lamp 9-33V 0.5M - Blister
RL180SLEDB 180 Series Rear LED Stop / Position Lamp 9-33V 0.5M - Blister

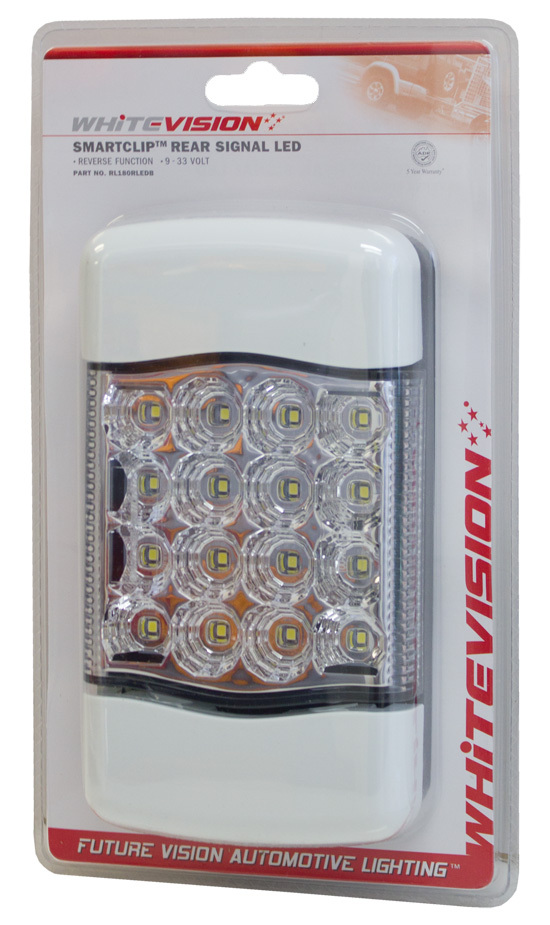

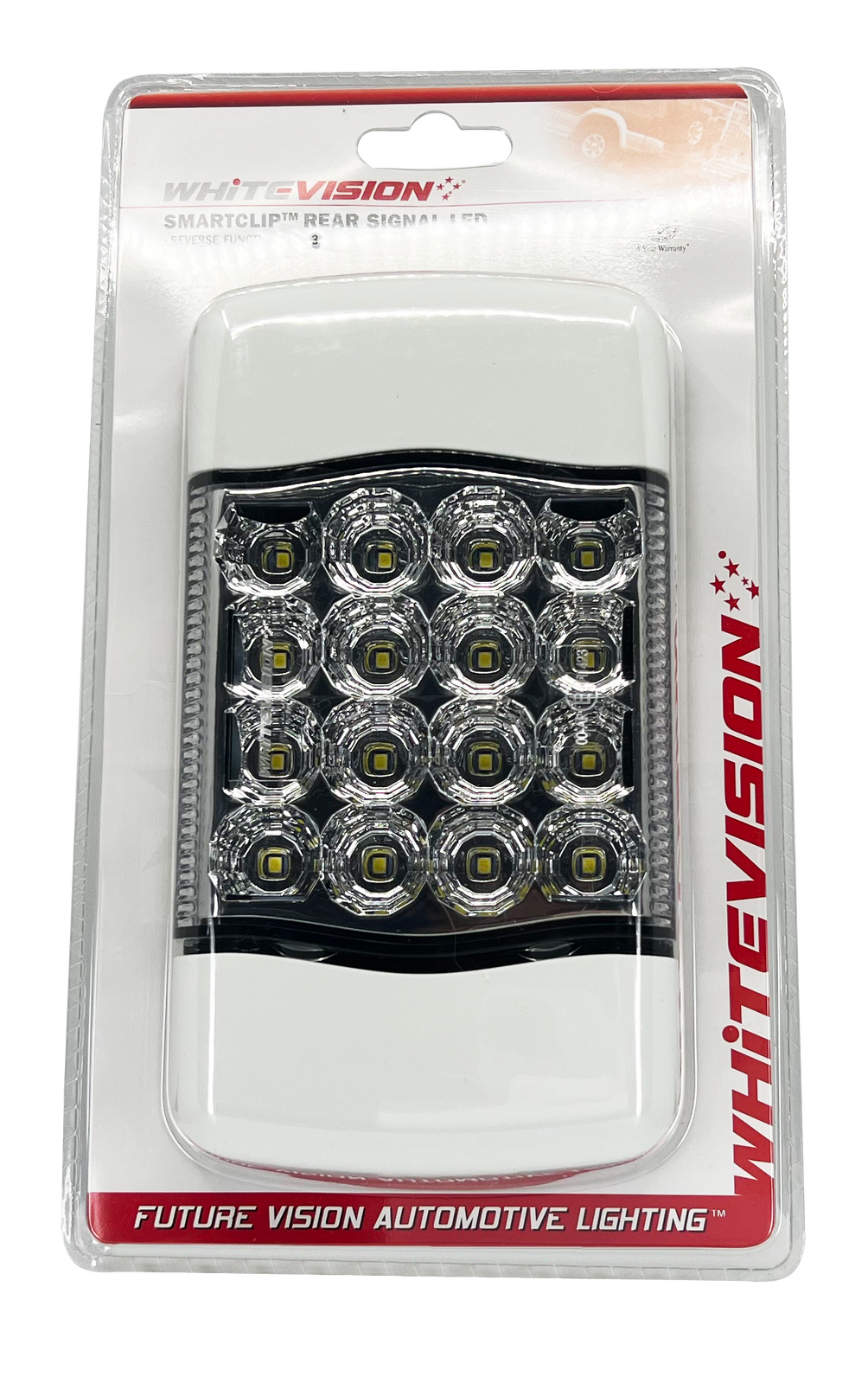

RL180RLEDB 180 Series Rear LED Reverse Signal Lamp 9-33V 0.5M - Blister
