Product Description

Description

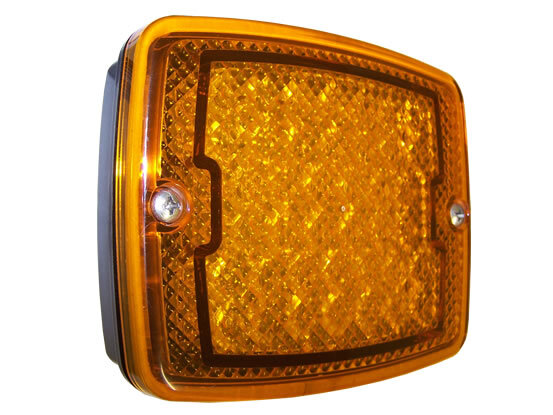

1200 Series LED lamps feature advanced crystal optic technology to ensure compliance and conformity across a range of signal functions. The 1200 series is specially designed for heavy duty, constant use commercial applications. These lamps feature high heat and enhanced chemical protection to perform in harsh operating conditions. The dimensions of the lamp are exactly to similar style lamps allowing for easy retrofit upgrades or replacement. The units can either be flush mounted or stud mounted with supplied base. Suited to OE and commercial applications.



Features

  • • Ultra heavy duty construction
  • • Designed for commercial environments
  • • Dimensions to allow retrofitting, upgrade or replacement of similar style lamps
  • • Enhanced chemical protection
  • • Fully ADR Compliant

Specifications

Specifications

Applications •Trucks •Rigid Bodies •Bus & Coach •Custom Builds
Functions Front Position

Front Direction Indicator

Rear Direction Indicator

Stop / Rear Position
Voltage 9-33V DC VarivoltÆ
Wattage Front Indicator:3.24W
Mounting Flush Mount or Stud Mount
Materials High Impact PMMA Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 135x110x59mm
ADR Compliance Front Position:49/00, Front Direction Indicator:6/00:Cat1, Rear Direction Indicator:6/00:Cat2a, Stop:49/00, Rear Position:49/00
CRN Certification FM1200C: Front Position:32005

FL1200F: Front Direction Indicator:32760

FL1200R: Rear Direction Indicator:31318

SL1200: Stop:31309 Rear Position:31320

Parts List

FM1200 1200 Series Front Clearance 9-33 0.5M - Box
FL1200F 1200 Series Front Direction Indicator 9-33 0.5M - Box
FL1200R 1200 Series Rear Direction Indicator 9-33 0.5M - Box
SL1200 1200 Series Stop / Rear Position 9-33 0.5M - Box
