Product Description

Description

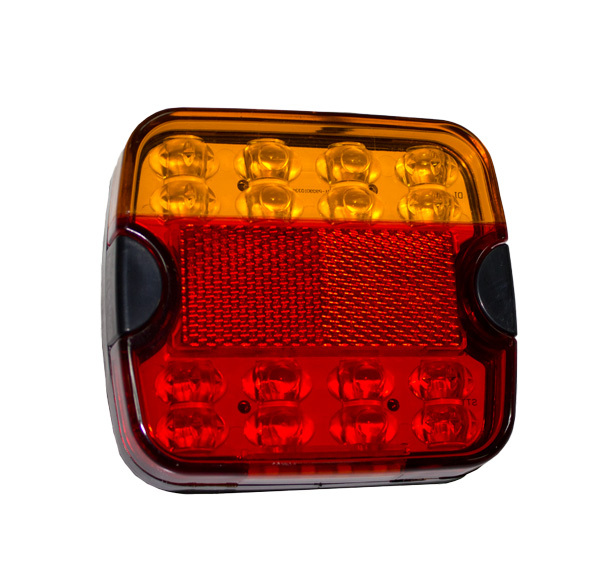

The CRL10LED is a new generation combination lamp with innovative design making that is suited to a wide variety of applications. Incorporating stop/tail/indicator, licence plate and reflector functions all in one package, the CRL10LED features the new Multimount™ system enabling the lamp to be either stud mounted or screw mounted depending on the mounting requirement. This makes a very versatile lamp for almost any rear signalling application. Comprising a polycarbonate lens, high-quality optics and tough ABS base the CRL10LED series delivers paramount reliability and performance. Suited to OEM and commercial applications.



Features

  • • Full function LED combination lamp
  • • Highly aesthetic optical design
  • • All in one solution for rear lighting
  • • Rear stud or front screw mount – Multimount™
  • • Fully ADR compliant

Specifications

Specifications

Applications •Trucks •Heavy Trailers •Trailers •RV
Functions Stop / Rear Position / Direction Indicator / Licence Plate  / Reflector
Voltage 9-33V DC Varivolt®
Wattage Stop:1.2W
Rear Position:0.17W
Licence Plate 0.1W
Indicator:1.2W
Mounting
Rear stud or front screw Multimount™
Materials
Polycarbonate Lens ABS Body
Cable Length 0.5M, 9M Optional
Dimensions
104x94x20mm
ADR Compliance
Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Licence Plate: 48/00, Retro Reflector:47/00,
CRN Pending



Parts List

CRL10LEDLH 10 Series Rear Combination LED 9-33V – Multimount™ w/ 0.5mtr Cable
CRL105LEDB 10 Series Rear Combination LED w/ License Plate 9-33V – Multimount™ w/ 0.5M Cable
CRL10LEDLH9 10 Series Rear Combination LED 9-33V – Multimount™ w/ 9mtr Cable
CRL10LEDRH9 10 Series Rear Combination LED w/ License Plate 9-33V – Multimount™ w/ 9mtr Cable
CRL10LEDLHB 10 Series Rear Combination LED 9-33V – w/ 0.5M Cable Blister
CRL10LEDRHB 10 Series Rear Combination LED w/ License Plate 9-33V – w/ 0.5M Cable Blister
